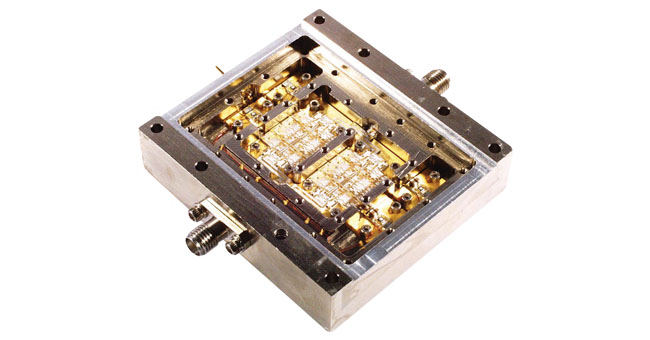

Ultra-Low Phase Noise Amplifiers

When phase noise is critical, turn to Mercury’s line of low phase noise amplifiers. Taking full advantage of the industry’s best device technology, these parts are designed to meet the toughest requirements. Through Mercury System’s advanced production capabilities, phase noise can be accurately measured—even during environmental tests, such as vibration.

Scroll Arrow

Ultra Low Phase Noise Amplifiers

Model Number Sortable column, activate to sort column ascending Freq Start (GHz) Sortable column, activate to sort column ascending Freq Stop (GHz) Sortable column, activate to sort column ascending Gain (dB) min Sortable column, activate to sort column ascending Flatness (±dB) max Sortable column, activate to sort column ascending Phase Noise 100Hz Sortable column, activate to sort column ascending Phase Noise 1KHz Sortable column, activate to sort column ascending Phase Noise 10KHz Sortable column, activate to sort column ascending Phase Noise 100KHz Sortable column, activate to sort column ascending Phase Noise 1MHz Sortable column, activate to sort column ascending NF (dB) max Sortable column, activate to sort column ascending P1dB (dBm) min Sortable column, activate to sort column ascending VSWR (In/Out) nom Sortable column, activate to sort column ascending Voltage (V), Current (mA) Sortable column, activate to sort column ascending Datasheet
AML612PNA1411 6 12 14 1 -143 -150 -155 -160 -167 6 25 2.0:1 12V, 500mA PDF
AML4040PNB1511 40 40 15 2 -135 -146 -150 -155 -160 - 24 2.0:1 6V, 1200mA PDF
AML26PNC1511 2 6 15 2 -145 -155 -160 -165 -170 7 34 1.5:1 12V, 2700mA PDF
AML26PNA1001 2 6 10.5 1 -150 -160 -168 -174 -175 6 16.5 1.5:1 8V, 115mA PDF
AML218PNA3213 2 12 32 2.5 -125 -140 -145 -155 -160 4 25 2.0:1 12V, 500mA PDF
AML69PNA1601 2 12 32 2.5 -125 -140 -145 -155 -160 4 25 2.0:1 12V, 500mA PDF
AML083PNA1801 0.8 3 18 1 -150 -160 -166 -170 -173 5 17 2.5:1 12V, 100mA PDF
AML69PNC1511 6 9 14 1 -145 -155 -160 -165 -170 8 34 1.4:1 12V, 2300mA PDF
AML812PNA0803 8 12 8 1.5 -145 -153 -160 -165 -168 6 25 1.8:1 12V, 250mA PDF
AML812PNB1813 8 12 18 2 -150 -160 -168 -172 -175 7 17 1.5:1 12V, 250mA PDF
AML1518PNA1711 15 18 14 0.5 -135 -145 -155 -163 -167 6 26 1.8:1 12V, 500mA PDF
