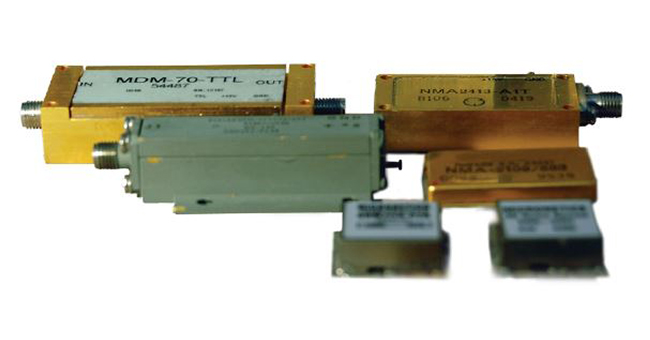

Noise Sources

Ideal for receiver built-in test (BIT), bit error rate (BER) testing and dithering circuits

EXPLORE NOISE SOURCES

+ Broadband Coaxial Noise Sources
Model Number Freq Start (GHz) Freq Stop (GHz) Output (dB min ENR) Spectral Density (dBm/Hz) Peak Factor Bias Voltage (V) Datasheet
NST18-A 0.01 18 25 -149 5:01 28

View

NMA2218-A1T 1 18 32 -140 5:01 15

View

NS5102-A1W 1 18 25 -149 5:01 15

View

NSL-2-B 0.001 1 29.0 - 31.0 -144 5:01 15

View

NS5102-A2X 1 18 25 -149 5:01 15

View

+ Fullband Coaxial Noise Sources
Model Number Freq Start (GHz) Freq Stop (GHz) Output (dB min ENR) Spectral Density (dBm/Hz) Peak Factor Bias Voltage (V) Supply Current (mA max) Datasheet
NS2640 26.5 40 14 -157 5:01 28 or 15 200

View

RFN25C 4 8 25 -144 5:01 28 or 15 20

View

RFN55S 2 4 55 -119 5:01 28 or 15 200

View

+ High-Power Noise Sources
Model Number Freq Start (MHz) Freq Stop (MHz) Output (dB min ENR) Spectral Density (dBm/Hz) Noise Power (N) (dBm) Flatness (dB P-P) max Bias Voltage (V) Datasheet
NMA-2513-2T 10 4000 78 -96 0 4 5 and 12

View

NMA-5108-A1M 0.0001 300 97.5 -75 10 3 28

View

NMA-2514-1T 6000 6000 74 -100 -3 4 5 and 12

View

NMA-5112-B2T 10 2000 89 -83 10 4 15

View

NMA-5300-B1M 2000 18000 64.5 -107 -5 5 15

View

NMA-2510-1T 10 1000 84 -90 0 1 5 and 12

View

NMA-2512-1T 10 2000 81 -93 0 3 5 and 12

View

NMA-2514-2T 100 6000 74 -100 -3 4 5 and 12

View

+ Surface Mount Noise Sources
Model Number Freq Start (MHz) Freq Stop (MHz) Output (dB min ENR) Spectral Density (dBm/Hz) Flatness (dB P-P) max Peak Factor Supply Current (mA max) Datasheet
NC504SM-12 0.2 3500 31 -143 2 5:01 12

View

SMN3018-D1D 20 6000 30 -148 3 5:01 12

View

SMN7105-D1C 0.1 3 101 -73 -8 5:01 12

View

SMN7114-C2A 100 3000 45 -129 2.5 5:01 90

View
