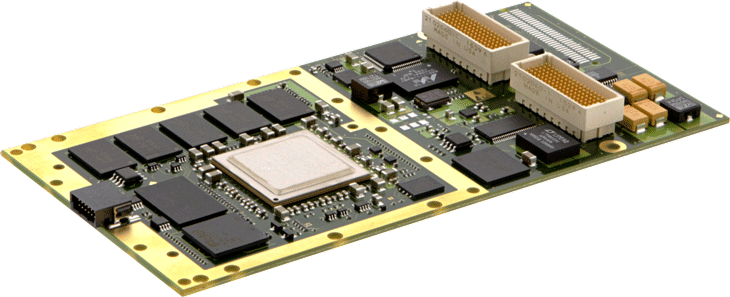

MFCC-8558 XMC Single Board Computer with BuiltSAFE

NXP QorIQ T2080 CPU, 4GB DDR3, PCIe 2.0, 15W, DO-254 and DO-178 artifacts

  • slide

DO-178C/DO-254 Certifiable Processing for Aerospace, Defense

The MFCC-8558 with BuiltSAFE™ technology is a DAL-C safety-certifiable single board computer. The MFCC-8558 can be delivered with all necessary documentation, certification evidence and supporting artifacts required to prove compliance for avionics certification.

highest-design-assurance-level-sm.png   builtsafe-694x438.jpg

DOWNLOAD DATASHEET

Lower Malfunction Risk and Save Resources

Mercury’s proven avionics modules accelerate safety-critical applications like AI machine vision and augmented reality, expedite the certification process, save aircraft resources and speed subsystem time to market.

FeaturesSpecificationsBoard Support Packages (BSP)
Features

Key Features

  • QorIQ® T2080 processor
  • Low-SWaP, power options with avionics I/O or high performance video graphics
  • 4x PCIe® Gen2 interfaces on XMC (full mesh support)
  • 1x DAL-C Fast Ethernet interface on XMC
  • Maintenance/mission mode with specific hardware logic
  • Safety-optimized board management controller
  • Rugged and 15 W power-efficient performance
  • DO-254 and DO-178 artifacts for DAL-C certification
  • Safety certification services and support

DOWNLOAD DATASHEET


Specifications

Processor

  • NXP QorIQ T2080 four dual threaded e6500 cores
  • AltiVec unit

Memory

  • 4 GB DDR3L at 14.4 GB/s peak with ECC protection
  • 4 GB Flash EPROM (NAND)
  • 512MB Flash EPROM (NOR)
  • 256 KB FRAM NVRAM

Links/Connections

  • 3x PCIe Gen2 x1 on XMC-P6
  • 1x PCIe Gen2 x4 on XMC-P5
  • 1x SGMII on XMC-P6 (DAL-C) (1)
  • 2x UARTs on XMC-P6 (2)

Safety Optimized Board Management Controller

  • Voltage monitoring
  • Temperature monitoring (thermal sensors on critical positions)
  • Elapsed time and real-time counter
  • Watchdog (short and long period)
  • Error reporting
  • Reset management
  • Certifiable board support package
  • Initialization sequence
  • Built-In Tests
Board Support Packages (BSP)

Board Support Packages (BSP)

  • Linux
  • Green Hills Integrity
  • WindRiver VxWorks653
