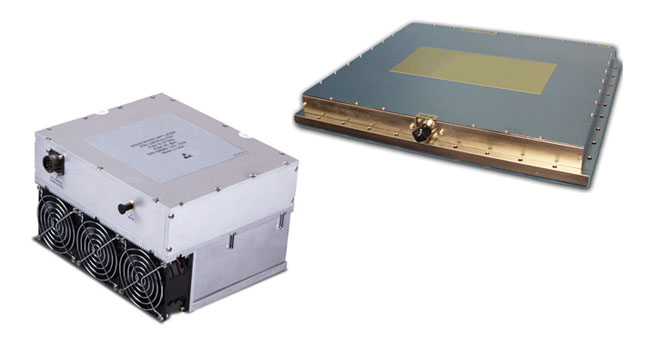

High-Power CW Amplifiers

Our family of solid-state power amplifiers (SSPAs) utilizes proprietary technology and a proven building block approach that enables rapid customization to specific requirements. The world-class design team understands the tradeoffs between GaAs versus GaN and FET versus MMIC to quickly achieve the right design for the right problem. Whether you need a connectorized compact GaN SSPA or an integrated SSPA assembly, we have the technical know-how to deliver on-time and on-budget.

Scroll Arrow

High-Power CW Amplifiers

Model Number Sortable column, activate to sort column ascending Freq Start (GHz) Sortable column, activate to sort column ascending Freq Stop (GHz) Sortable column, activate to sort column ascending Psat (dBm) Sortable column, activate to sort column ascending Psat (W) Sortable column, activate to sort column ascending Gain (dB) min Sortable column, activate to sort column ascending PAE typ. Sortable column, activate to sort column ascending Vd (VDC) Sortable column, activate to sort column ascending Id (A) Sortable column, activate to sort column ascending Datasheet
MSC2931P3540 29.5 31 40 10 35 15% 5 19 PDF
DM-HPMB-40-101 6 18 42 30 50 15% 28 8 PDF
AML218P4012 2 18 37 6 35 13% 32 1.5 PDF
DM-HPMB-25-102 0.5 6 25 20 50 20% 50 2.3 PDF
AML1416P4511 14 16 41.5 14 45 20% 35 3.2 PDF
DM-HPLS-25-101 1 3 43 25 50 30% 45 2.5 PDF
DM-HPKU-40-101 14.5 15.5 44 30 45 15% 28 6.5 PDF
DM-HPKA-10-102 29 31 40 10 50 15% 20 3.6 PDF
L0618-43 6 18 43 20 41.5 7% 12 25 PDF
DM-HPSC-150-101 2 6 51.5 150 60 25% 28 25 PDF
L0618-50-T523 6 18 50 100 50 8% 35 35 PDF
L3236-38 32 36 38 6.3 40 5% 12 17 PDF
L0618-40 6 18 40 10 38.5 7% 12 12 PDF
L0809-45 8.5 9.6 45.5 35 50 10% 15 22 PDF
MSC56P4544 5 6 42 15 45 30% 30 2.8 PDF
MSC56P4042 5 6 40 10 40 30% 30 1.8 PDF
AML59P4512 5.5 9 44 25 45 25% 28 4 PDF
DM-HPMB-10-101 2 18 38 10 45 15% 32 2.5 PDF
DM-HPS-10-101 2.2 2.5 40 15 14 35% 28 1.7 PDF
DM-HPLS-100-101 1 3 49 100 50 25% 45 10 PDF
L3640-37 36 40 37.5 5.6 40 5% 12 17 PDF
L1840-27 18 40 26.5 0.45 30 3% 12 4 PDF
DM-HPMB-10-103 0.1 6 39 10 55 20% 28 2.2 PDF
L2632-37 26 32 37 5 38 5% 12 10 PDF
MSC58P4549 5.5 8 49 80 45 20% 28 12 PDF
DM-HPKU-30-102 14.85 15.35 41 30 45 20% 28 3.5 PDF
DM-HPLS-50-101 1 3 46 50 50 30% 45 4 PDF
AML618P4014 6 18 40 10 40 12% 32 2.8 PDF
AML811P5012 7.8 11 45.5 35 50 23% 28 5.5 PDF
AML811P5013 7.8 11 48 63 50 25% 28 11.5 PDF
DM-HPS-35-101 2.2 2.5 45.5 40 20 35% 28 3.6 PDF
DM-HPC-60-101 5.5 8.5 46 50 50 25% 28 6.5 PDF
DM-HPKU-40-105 13.75 14.5 47 50 45 25% 24 10 PDF
AML218P4011 2 18 39 10 40 12% 32 2.8 PDF
DM-HPMB-5-101 2 18 36 5 45 15% 32 1.5 PDF
DM-HPMB-25-101 6 18 40 15 50 15% 28 4.5 PDF
AML218P4013 2 18 42 20 38 12% 32 4.9 PDF
DM-HPX-50-102 8 11 46 40 50 30% 28 6 PDF
MSC2930P1741 29 30 40 10 15 23% 28 2.2 PDF
L0505-50 5.3 5.9 50 100 50 15% 15 40 PDF
DM-HPX-25-101 8 11 43 25 45 30% 28 3.5 PDF
L2640-32 26 40 32 1.6 35 5% 12 5 PDF
DM-HPSC-25-101 2 6 43 25 45 30% 28 3 PDF
DM-HPKU-25-105 13.75 14.5 44 25 45 20% 24 6 PDF
L0618-46 6 18 46 40 40 7% 12 12 PDF
MSC56P5050 5 6 48 63 50 30% 30 11 PDF
DM-HPSC-50-101 2 6 46 50 50 30% 28 6 PDF
DM-HPKU-40-104 14.4 15.35 44 30 53 15% 28 6 PDF
AML1314P4511 13.75 14.5 42 15 45 20% 30 2.3 PDF
AML1314P4512 13.75 14.5 44.5 28 45 19% 30 4.6 PDF
L0812-46 8 12 46 40 45 12% 12 28 PDF
AML1416P4512 14 16 44 25 45 18% 35 6.2 PDF
DM-HPKA-20-102 29 31 42 20 50 15% 20 6 PDF
DM-HPX-100-105 9.75 10.25 49.5 100 50 30% 28 17 PDF
L3434-40 34 34.5 40 10 45 5% 12 17 PDF
AML618P4015 6 18 42 15 40 12% 32 4.9 PDF
DM-HPKU-20-101 14.4 15.5 41.5 15 45 15% 28 3.5 PDF
DM-HPC-30-101 5.5 8.5 44 35 50 25% 28 3.5 PDF
L1826-36 18 26 36 4 38 5% 12 8 PDF
L2426-40 24 26 39.5 9 40 5% 12 16 PDF
L0910-45 9 10.5 45 30 45 10% 15 24 PDF
DM-HPSC-80-101 2 6 48 80 50 25% 28 12 PDF
DM-HPX-30-101 8 11 44 30 45 22% 28 5.5 PDF
DM-HPL-10-102 1.625 1.85 40 15 30 35% 28 1.7 PDF


Contact Us

Have a question or custom design requirement? Contact us to speak with our team of experts standing by.
Email us




Downloads

An overview of Mercury’s broad RF and microwave solutions including compact components and highly integrated, modular assemblies.

Download Now

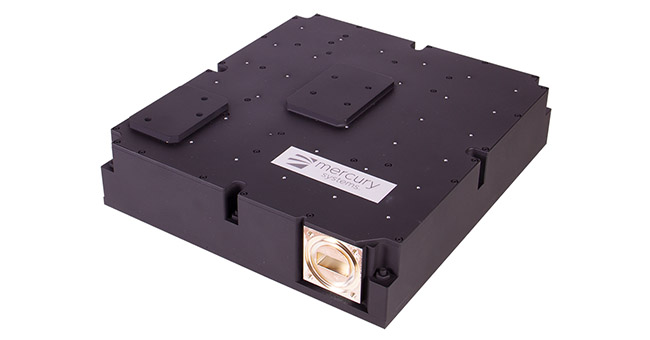

Learn how Mercury Systems can leverage its 40 years of space heritage to deliver the product you need for your space application.
