AVM4102 Multi-Function Display

CLICK TO ENLARGE IMAGE

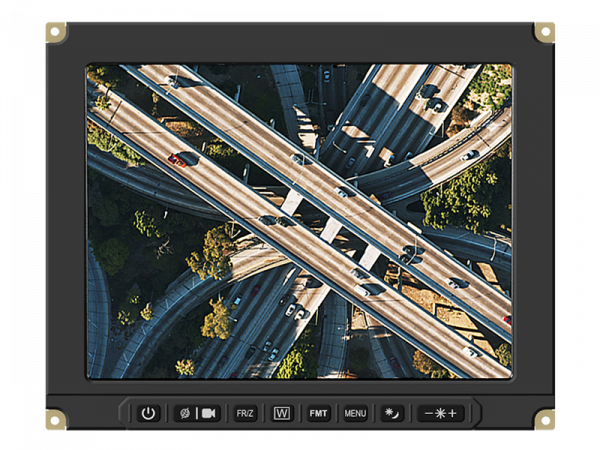

AVM4102 Multi-Function Display

The AVM4102 boasts a 10.4″, bright display and XGA resolution for crystal clear imagery in the harshest conditions.

Specifications

Model AVM4102

Height (in)

  • 8.13

Width (in)

  • 10

Depth (in)

  • 2.94

Weight (lb)

  • 5.3

Display Area (in)

  • 10.4

Aspect Ratio

  • 4:3

Native Resolution

  • 1024 X 768

Dimming

  • 28VDC/5VDC/5VAC (Optional)

Screen Modes

  • PbP, PiP, SS

Touchscreen

  • (Option) Resistive



Data I/O

  • Discrete 2 in (Optional)

Video I/O

  • 1 HD (Optional), 2 VGA, 3 SD

NVIS

  • NVIS-B (Optional)

Configurable Features

  • Heater, NVIS, Remote Dimming, Touchscreen, Triax Connectors, Video Out

Storage Temperature Range

  • -55˚C to +85°C

Operating Temperature Range

  • -40°C to +71°C

Heater Glass

  • Consult Factory (Option)

Input Voltage

  • 28 VDC

Qualifications

MIL-STD-810



Products formerly Avalex

Multi-Function Displays

Integrate Multiple Applications

With a full range of sizes, features and configurations, our displays support multiple applications and easily integrate into any aircraft or vehicle.
