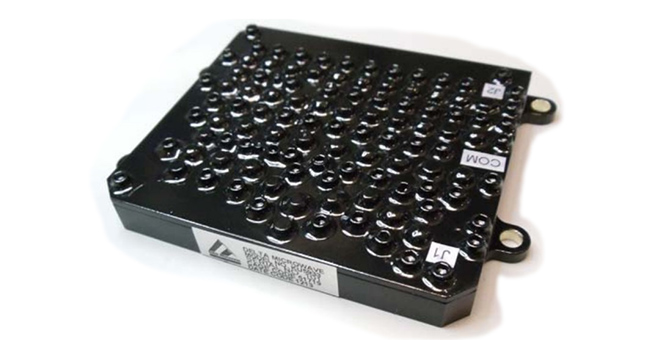

Multiplexers and Diplexers

Trusted microwave multiplexers and diplexers for the most demanding applications

EXPLORE MULTIPLEXER SOLUTIONS

+ Multiplexers
Model Number Passband 1 (MHz) Passband 2 (MHz) Passband 3 (MHz) Passband 4 (MHz) Insertion Loss (dB) Size (inches) Connectors Datasheet
S5452 1435-1540 1750-1850 2200-2290 2310-2400 0.5 2.0 x 3.7 x 8.0 SMA Female

View

U5997 880-915 925-960 1710-1785 1805-1880 1.1 3.5 x 3.8 x 10.0 SMA Female

View

U5988 138-174 1435-1540 824-904 1850-1990 1 2.25 x 3.0 x 5.0 N Female

View

U5995 880-915 925-960 1710-1785 1805-1880 1.1 3.5 x 3.8 x 10.0 SMA Female

View

S5424 1544-1555 1670-1710 2020-2040 2200-2300 0.5 1.5 x 6.0 x 8.0 N Female

View

+ Diplexers
Model Number Low Passband Start (MHz) Low Passband Stop (MHz) High Passband Start (MHz) High Passband Stop (MHz) Insertion Loss (dB) Size (inches) Connectors Datasheet
L5617 1552 1556 1653 1657 1 1.0 x 6.0 x 12.0 N Female

View

U5986 118 137 225 400 0.7 1.0 x 2.0 x 4.0 N Female

View

U5920 30 88 116 400 0.5 1.8 x 3.2 x 5.5 TNC

View

U5618 824 846.5 869 894 0.7 3.0 x 4.5 x 9.9 N Female

View

C5938 2500 4000 4000 7500 1 1.0 x 1.5 x 2.1 N Female

View

C5515 5735 5735 5800 5800 0.5 0.75 x 2.5 x 3.0 SMA Female

View

U5620 824 835 869 880 0.7 3.0 x 4.5 x 14.2 N Female

View

S5401 1435 1540 2200 2300 0.3 1.6 x 3.1 x 3.7 SMA Female

View

C5914 3700 4200 5925 6430 1 0.75 x 3.0 x 3.0 N Female

View

Ku5924 14530 14930 15150 15350 1.9 3.1 x 3.1 x 8.0 SMA Female

View

X5510 8175 8225 8475 8525 2 0.5 x 1.0 x 2.0 SMA Female

View

L5331 1575.42 1575.42 1227.6 1227.6 2 0.37 x 1.31 x 1.5 Custom

View

U5714 30 90 108 800 1.1 1.2 x 2.0 x 5.5 N Female

View

L5624 1525 1545 1646.5 1646.5 1 1.5 x 3.5 x 8.0 SMA Female

View

U59117 230 270 292 318 2 1.0 x 3.6 x 4.0 N Female

View

U5634 824 849 869 894 1 3.0 x 6.2 x 10.0 N Female

View

L5938 225 400 950 1600 0.4 1.0 x 3.0 x 3.75 N Female

View

L5969 140 400 950 1600 0.4 1.0 x 3.0 x 3.8 N Female

View

X5908 6000 7200 9900 10300 1.5 0.8 x 1.5 x 4.4 SMA Female

View

L5748 1215 1240 1520 1585 0.75 1.5 x 2.5 x 7.5 SMA Female

View

L5738 1682.1 1694.1 2024.1 2034.1 0.5 1.5 x 2.5 x 7.5 N Female

View

Ku5606 14400 14830 15150 15350 1.5 0.4 x 1.4 x 2.1 SMA Female

View

S5711 1750 1850 2200 2300 0.5 1.5 x 2.5 x 7.5 N Female

View

U5402 55 85 685 715 2 0.6 x 3.2 x 4.9 SMA Female

View

L5692 1552 1556 1653 1657 1 3.0 x 6.0 x 12.0 TNC Female

View

L5972 150 400 980 1600 0.5 1.0 x 1.0 x 3.8 C

View

U5929 243 270.5 292.5 318 0.85 5.3 x 6.9 x 33.0 N Female

View

L5680 1535 1543 1636.5 1645 0.55 1.5 x 5.1 x 7.0 N Female

View

L5215 1575.42 1575.42 1227.6 1227.6 1.5 0.5 x 1.34 x 1.38 SMA Female
L5634 1027 1033 1084 1095 0.5 1.5 x 2.75 x 4.0 SMA Female

View

U5994 118 137 225 400 0.5 1.0 x 2.0 x 4.0 N Female

View

U5639 806 824 850 888 0.6 3.0 x 4.5 x 14.2 N Female
L5349 1565.42 1585.42 1525 1559 1 2.0 x 3.7 x 5.5 TNC Female

View

S5717 1750 1850 2200 2300 0.5 1.5 x 2.5 x 7.5 SMA Female

View

+ GPS Diplexers
Model Number L2 (1227 MHz) Bandwidth L1 (1575 MHz) Bandwidth Insertion Loss (dB) Size (inches) Connectors Datasheet
L54123 +/-8 +/-8 1.9 0.55 x 2.0 x 3.0 SMA Female

View

L5215 +/-15 +/-15 1.5 0.5 x 1.34 x 1.38 SMA Female

View

L5647 +/-10 +/-10 0.8 1.3 x 2.5 x 7.5 SMA Female

View

L5513 +/-8 +/-8 0.45 2.1 x 4.0 x 9.8 SMA Female

View

L54144 +/-12 +/-12 0.5 1.0 x 3.0 x 3.0 SMA Female

View

L5540 +/-11 +/-11 1 1.25 x 2.6 x 5.8 SMA Female

View

L5745 +/-8 +/-8 0.75 1.5 x 2.5 x 7.5 SMA Female

View
