GPS Filter Amplifiers

Integrated RF filter/amplifiers for the L1, L2, L5 GPS bands

  • slide

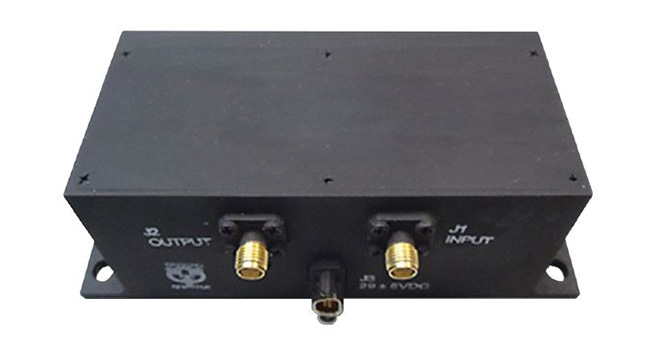

GPS Pre-amplifiers for Mission-Critical Applications

Mercury Systems’ family of GPS filters/amplifiers is the right choice for your high reliability GPS receiver. Whether your application is ground, airborne, missile or launch/reentry vehicle, you can trust the technology behind these advanced products. Custom designs including multiple outputs and integrated receiver protection limiters are also available.

Explore GPS Filter Amplifiers

Model Number L2 (1227 MHz) Bandwidth L1 (1575 MHz) Bandwidth Gain (dB) Noise Figure (dB) Size (inches) Connectors Datasheet
L59103 +/-15 +/-15 48 2 2.0 x 5.75 x 9.0 SMA Female

View

L54148 +/-1 +/-8 25 1.5 1.5 x 3.0 x 3.0 SMA Female

View

L59106 +/- 18 +/- 18 24 3 1.6 x 2.72 x 8.44 SMA Female

View

L5698 +/-10 +/-10 30 3.6 0.85 x 2.5 x 4.0 TNC Female

View

L54138 NA +/- 10 25 2.9 0.84 x 1.5 x 4.5 SMA Female

View

L54128 +/- 10 +/- 10 12 2.7 0.5 x 2.2 x 3.25 SMA Female

View

L59105 +/- 12 +/- 12 23 2.5 1.75 x 2.5 x 9.0 SMA Female

View

L54108 NA +/- 8 25 2.5 0.5 x 1.0 x 2.0 SMA Female

View

L5988 NA +/- 10 12 3 0.75 x 1.5 x 6.0 SMA Female

View

L5667 NA +/- 8 25 3 0.5 x 1.0 x 2.5 SMA Female

View

L5629 +/-10 +/-10 25 2.7 0.5 x 1.3 x 4.0 SMA Female

View

L54112 +/-8 +/-8 40 2.5 0.63 x 3.5 x 4.0 SMA Female

View

L5217 NA +/- 10 20 2 0.6 x 1.81 x 3.0 SMA Female

View

L5676 +/- 10 +/- 10 25 2 0.5 x 2.2 x 4.0 SMA Female

View

L54109 +/- 8 +/- 8 25 2.5 0.63 x 3.5 x 4.0 SMA Female

View

L5697 +/-10 +/-10 34 3 0.5 x 3.0 x 3.0 SMA Female

View

L54113 +/- 10 +/- 10 25 2.5 0.5 x 2.2 x 2.75 SMA Female

View

L54129 +/- 1 +/- 8 25 1.5 1.5 x 3.0 x 3.0 SMA Female

View

L54122 NA +/- 10 25 5.5 0.5 x 2.2 x 2.75 SMA Female

View

L5627 +/-10 +/-10 25 4.1 0.5 x 1.3 x 4.0 SMA Female

View

L5878 NA +/- 10 12 2.7 1.5 x 3.4 x 3.4 SMA Female

View

L5625 +/-10 +/-10 30 3.6 0.5 x 2.5 x 4.0 SMA Female

View

L5475-1 NA +/-10 22 2.5 0.75 x 1.5 x 4.5 SMA Female

View

L5669 +/-10 +/-10 25 2.5 1.0 x 2.0 x 5.1 N Female

View

L5996 +/- 10 +/- 10 24 2.5 1.5 x 3.0 x 9.0 SMA Female

View
