ROCK-2 OpenVPX Subsystem

DO-178C/DO-254 certifiable 3U OpenVPX modular subsystem

  • slide
  • slide

Achieve Flight-Safety Certification with Versatile Mission-Critical Subsystem

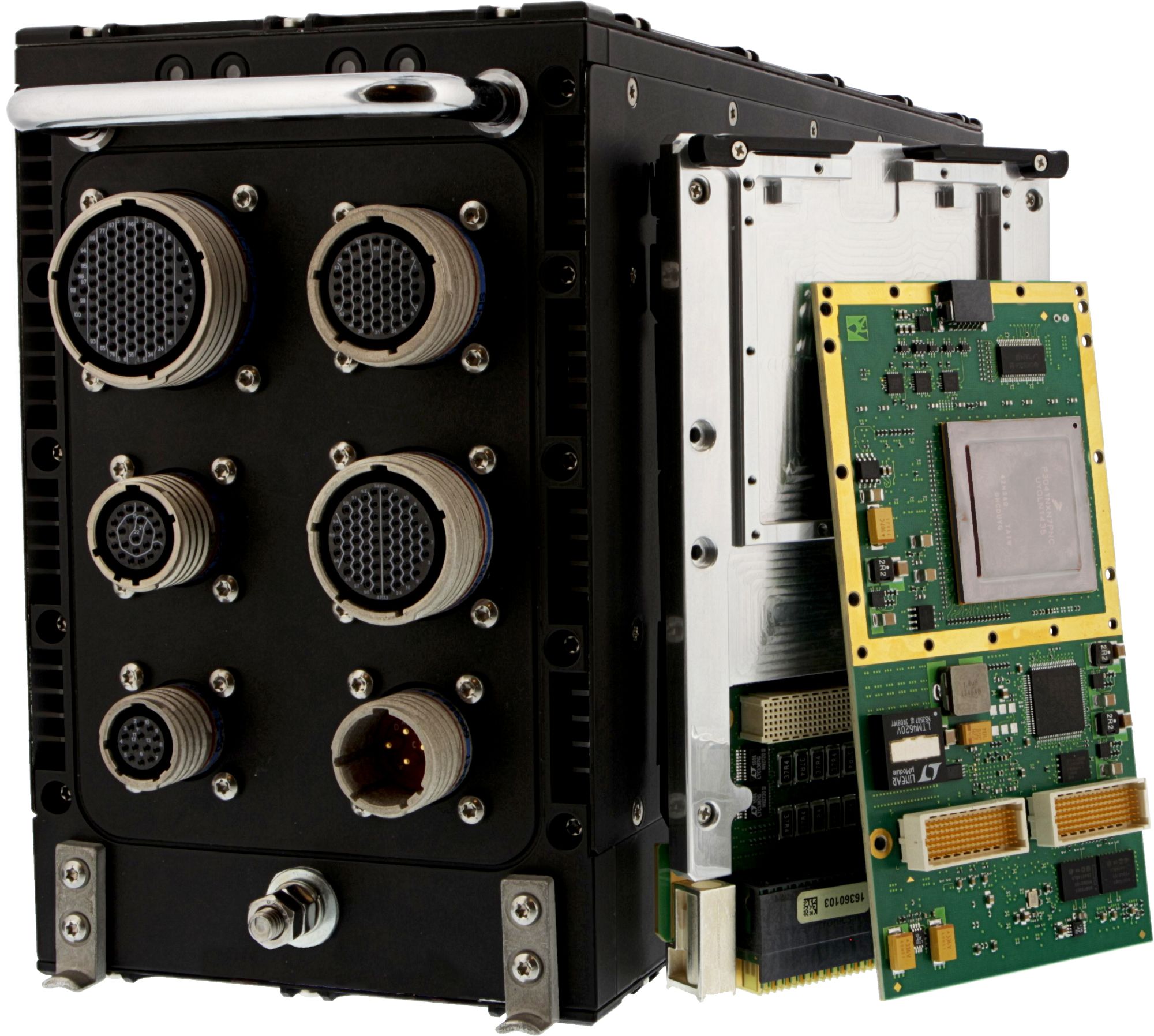

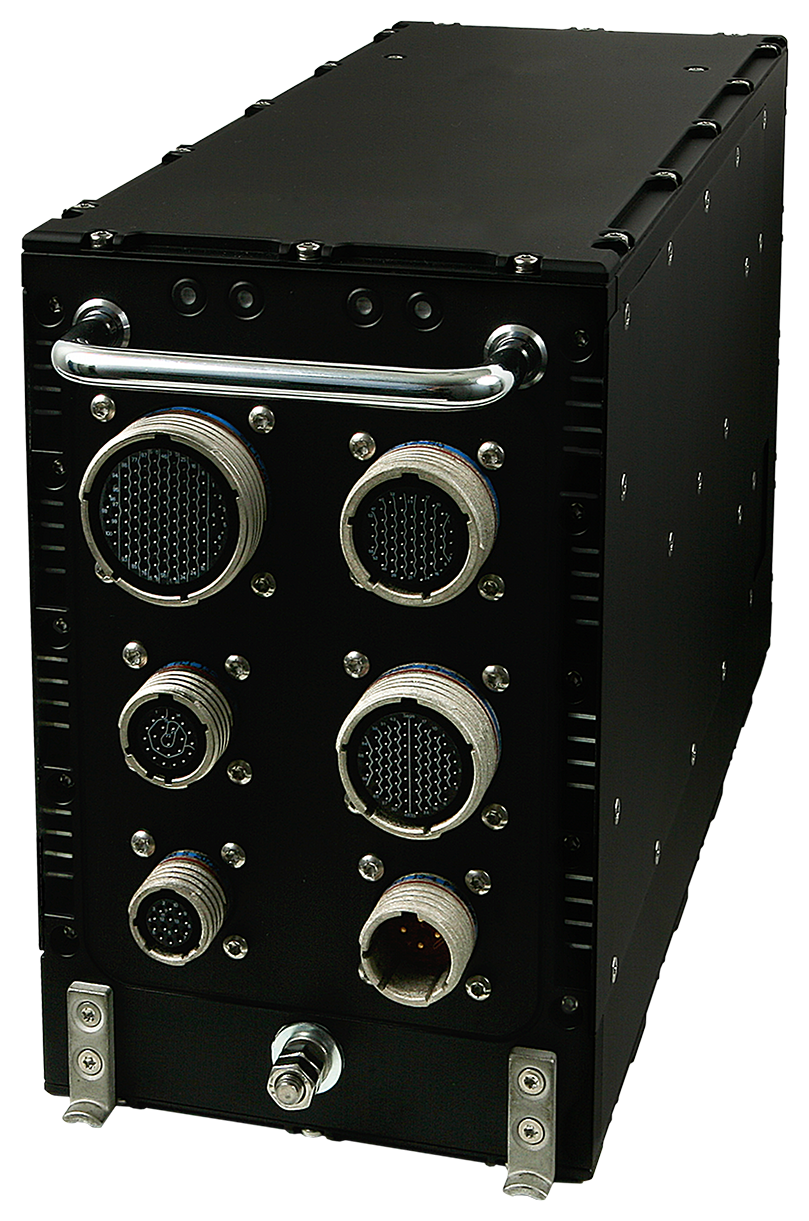

The EnsembleSeries ROCK-2 is a modular 3U OpenVPX™ subsystem designed for low-SWaP mission-critical applications requiring flight-safety certification. The ROCK-2 subsystem includes comprehensive and reusable Design Assurance Level (DAL) artifacts that lower risk to the flight-safety certification process for both hardware (DO-254) and software (DO-178B/C).

Implementing BuiltSAFE™ technologies and engineering to DO-178C/DO-254 design safety rules, the ROCK-2 development process is guided by independent verification and validation. To provide even greater flexibility, the ROCK-2 supports mixed safety-critical functions and applications. Our pre-qualified solutions are supplied with the documentation and artifacts required for RTCA DO-178C/DO-254 certification level C and higher.

Features:

  • Rugged, low-SWaP 3U OpenVPX chassis subsystem
  • DO-178C/DO-254 certifiable to DAL-A
  • Up to 4x QorIQ™ T2080 processors
  • Optional Intel® Core™ i7 or Xeon® processors
  • Full I/O avionics interface with advanced video and graphics processing
  • Sealed, forced-air, conduction-cooled chassis (-40°C to +70°C operating temperature)
  • Pre-integrated and pre-qualified to DO-160 and MIL-STD-810

highest-design-assurance-level-sm.png   builtsafe-694x438.jpgintel-resized-logo.png



DOWNLOAD DATASHEET
