Drop-in Ferrites

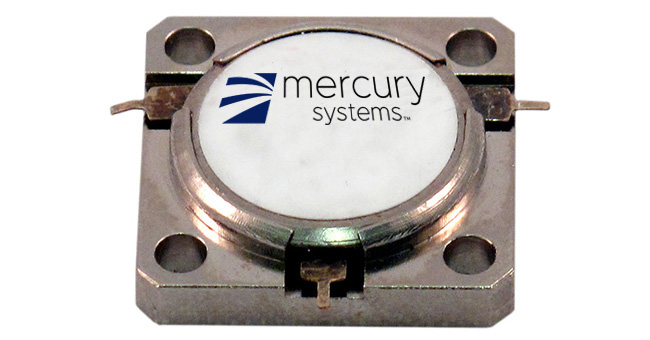

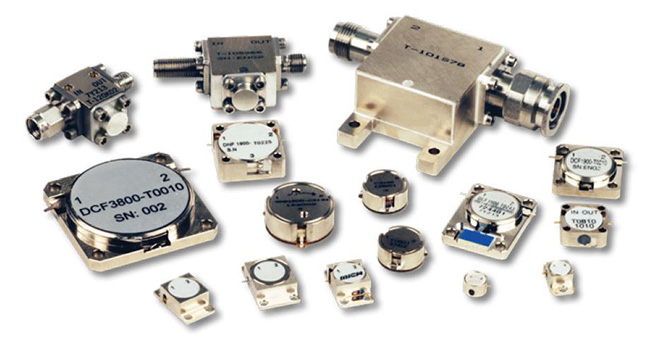

These compact isolators and circulators are the ideal choice to balance size and performance. With frequencies above 20GHz, these products are designed to achieve the toughest of specs. Don't see exactly what you need—we have the capability to rapidly customize any product for specific requirements.

Scroll Arrow

Ferrites Drop-in

Type
Model Number Sortable column, activate to sort column ascending Freq Start (GHz) Sortable column, activate to sort column ascending Freq Stop (GHz) Sortable column, activate to sort column ascending Type Sortable column, activate to sort column ascending Isolation dB (min) Sortable column, activate to sort column ascending Insertion Loss (max) Sortable column, activate to sort column ascending VSWR Sortable column, activate to sort column ascending Power (Watts) (peak/avg) Sortable column, activate to sort column ascending Datasheet
SMF635-F1510 15 18 2-Port Isolator 20 0.6 1.25:1 10/1 PDF
SMF635-F1702 17.7 19.7 2-Port Isolator 20 0.5 1.25:1 5/.05 PDF
SMF950F0709 7.8 8.5 2-Port Isolator 20 0.5 1.25:1 5 PDF
SMF635-F1801 18.4 19 2-Port Isolator 20 0.4 1.25:1 5/.05 PDF
DNF1900-T0310 3 3.5 2-Port Isolator 20 0.6 1.25:1 200/20 PDF
SMF635F2105 21.2 23.6 2-Port Isolator 18 0.7 1.30:1 5 PDF
SMF635-F2103 21.2 23.6 2-Port Isolator 18 0.7 1.3:1 5/.05 PDF
SMF950-F0725 7.8 8.5 2-Port Isolator 20 0.5 1.25:1 20/2 PDF
DNF2200C0301 3 6 2-Port Isolator 16 0.7 1.40:1 500/100 PDF
SMF950-F0720 7.1 7.8 2-Port Isolator 20 0.5 1.25:1 20/5 PDF
SMF635-F1010 10.95 12.75 2-Port Isolator 18 0.6 1.3:1 10/1 PDF
SMF950-F0300 3.7 4.3 2-Port Isolator 18 0.5 1.25:1 50/5 PDF
DNF1300-T0500 5 6 2-Port Isolator 20 0.4 1.25:1 100/10 PDF
SMF635C1601 16.1 16.5 3-Port Circulator 20 0.7 1.25:1 10 PDF
DNF1300-T0530 5.8 6.5 2-Port Isolator 20 0.5 1.25:1 50/5 PDF
DNF1300-T1000 10.7 13.3 2-Port Isolator 20 0.4 1.25:1 20/5 PDF
SMF950-F0600 6.4 7.1 2-Port Isolator 20 0.5 1.25:1 50/5 PDF
SMF635-F0800 8.3 8.8 2-Port Isolator 20 0.4 1.25:1 20/2 PDF
DNF2540T0100 1.2 1.4 2-Port Isolator 20 0.4 1.25:1 300 PDF
SMF950-F0810 8 12 2-Port Isolator 18 0.5 1.25:1 5/.05 PDF
DNF1900-T0245 2.7 3.1 2-Port Isolator 20 0.5 1.25:1 200/20 PDF
SMF950-F0400 4.2 4.4 2-Port Isolator 20 0.5 1.25:1 50/5 PDF
DNF1300-T0600 6.4 7.8 2-Port Isolator 20 0.5 1.25:1 50/5 PDF
DNF1300-T0810 8 18 2-Port Isolator 15 1.0 1.5:1 20/6 PDF
SMF950-F1010 10 15 2-Port Isolator 17 0.5 1.25:1 10/2 PDF
DNF1300-T0700 7.2 8.4 2-Port Isolator 18 0.5 1.25:1 50/5 PDF
SMF950F0520 5.8 6.5 2-Port Isolator 20 0.4 1.25:1 5/50 PDF
SMF635-F1210 12 18 2-Port Isolator 17 0.7 1.35:1 5/.05 PDF
DNF2540C002 0.952 1.223 4-Port Circulator 20 0.4 1.25:1 2.5kW/16
SMF950C0902 9 10 3-Port Circulator 20 0.5 1.25:1 50-16.5 PDF
SMF950-F0310 3.6 4.2 2-Port Isolator 18 0.5 1.25:1 50/5 PDF
SMF635-F1415 14 14.5 2-Port Isolator 20 0.4 1.25:1 10/1 PDF
SMF635-F0910 9.5 10.5 2-Port Isolator 20 0.4 1.25:1 20/2 PDF
SMF1150-F0610 6 18 2-Port Isolator 13 1.3 1.7:1 3/0.5 PDF
SMF635-F1215 12.2 12.75 2-Port Isolator 20 0.4 1.25:1 10/1 PDF
SMF635-F1100 11.2 13.7 2-Port Isolator 18 0.5 1.3:1 10/1 PDF
SMF635-F1207 12.75 13.25 2-Port Isolator 20 0.4 1.25:1 10/1 PDF
DNF1900-T0302 3.3 3.9 2-Port Isolator 20 0.5 1.25:1 100/10 PDF
SMF950-F0530 5.4 5.9 2-Port Isolator 20 0.5 1.25:1 50/5 PDF
SMF950-F0410 4.4 5 2-Port Isolator 20 0.5 1.25:1 50/5 PDF
DNF1300T0710 7.1 7.9 2-Port Isolator 23 0.4 1.15:1 25 PDF
SMF635-F1320 13 15.5 2-Port Isolator 20 0.5 1.25:1 10/1 PDF
SMF635 -F0904 9.7 11.7 2-Port Isolator 18 0.5 1.3:1 20/2
DNF1900T00220 2.1 2.4 2-Port Isolator 20 0.5 1.25:1 200
SMF1150-F0800 8 18 2-Port Isolator 16 0.8 1.4:1 5/.05 PDF
SMF635-F1310 13 13.6 2-Port Isolator 20 0.4 1.25:1 10/1 PDF
DNF1300-T0720 7.8 8.5 2-Port Isolator 23 0.4 1.15:1 50/5 PDF
DNF1300-T0829 8 18 2-Port Isolator 15 1.0 1.5:1 20/6 PDF
DNF1900-T0315 3.6 4.2 2-Port Isolator 23 0.4 1.16:1 100/10 PDF
DNF1900-T0200 2.87 3.1 2-Port Isolator 20 0.5 1.25:1 200/20 PDF
SMF635-F1800 18 21 2-Port Isolator 20 0.4 1.3:1 5/.05 PDF
DNF1300-T1400 14 14.5 2-Port Isolator 20 0.6 1.25:1 20/5 PDF
SMF635-F0900 9.2 9.7 2-Port Isolator 20 0.4 1.25:1 20/2 PDF
DNF1300C0618 6 18 3-Port Circulator 13 0.4 1.60:1 1W PDF
SMF635F1000 10 11 2-Port Isolator 20 0.5 1.25:1 20/5 PDF
SMF635-F0700 7.8 8.3 2-Port Isolator 20 0.5 1.25:1 20/2 PDF
SMF635-F1105 11.7 12.3 2-Port Isolator 20 0.4 1.25:1 10/1 PDF
SMF635-1610 16 21 2-Port Isolator 18 0.6 1.3:1 10/1 PDF
SMF950-F0710 7 11 2-Port Isolator 18 0.5 1.33:1 5/.05 PDF
SMF950-F0600 6.4 7.1 2-Port Isolator 20 0.5 1.25:1 50/5 PDF
DNF2540T0020 0.79 0.86 2-Port Isolator 18 0.5 1.30:1 300 PDF
DNF1300-T0410 4.4 5 2-Port Isolator 20 0.4 1.25:1 100/10 PDF
DNF1300-T0501 5.4 5.9 2-Port Isolator 23 0.4 1.15:1 50/5 PDF
SMF635F0907 9 10.5 2-Port Isolator 20 0.5 1.30:1 1W PDF
