High-Power SMT Limiters

Mercury Systems’ portfolio of high-power RF limiters are precision engineered to deliver uncompromising performance for SWaP-sensitive applications demanding full functionality in the harshest of operating environments. Unique PIN diode architecture minimizes junction temperatures to assure long life under high-power conditions.

The newly released broadband, high-power surface mount (SMT) limiters highlights Mercury’s commitment to SWaP-optimized designs. By replacing cable interconnects with surface mount technology, physical footprint reductions are enabled without sacrificing performance or reliability.

Scroll Arrow

Limiters

Model Number Sortable column, activate to sort column ascending Free Range (GHz) Sortable column, activate to sort column ascending Max Pulse Width (µSec) Sortable column, activate to sort column ascending Peak Power (W) Sortable column, activate to sort column ascending Flat Leakage (dBm) Sortable column, activate to sort column ascending Dimensions Sortable column, activate to sort column ascending Datasheet

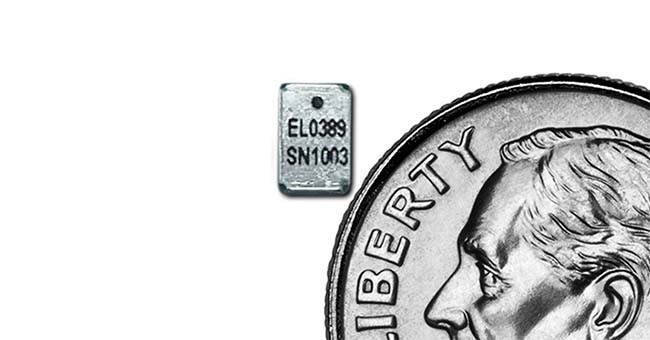

EL0389 8.5 - 12 5 200 17 4mm x 3mm PDF
