Low-Pass Filters

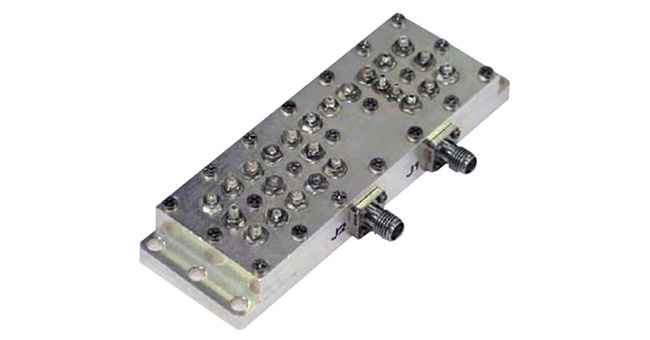

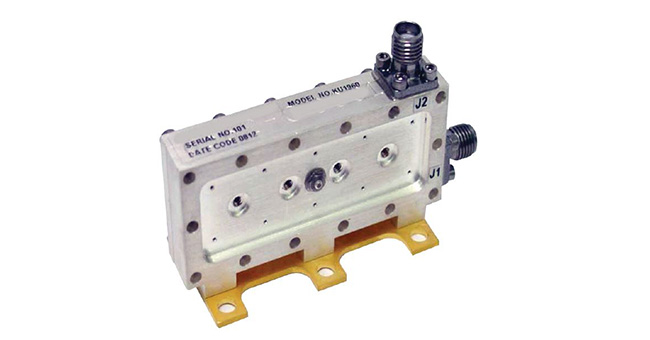

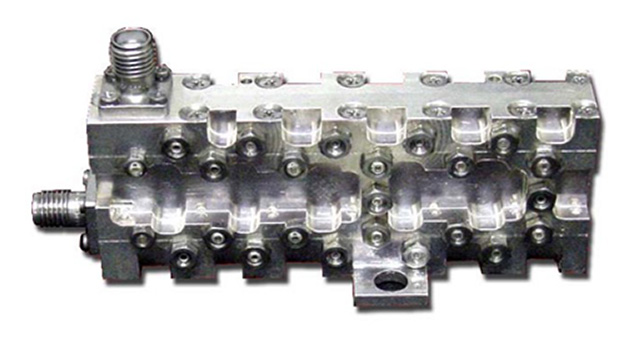

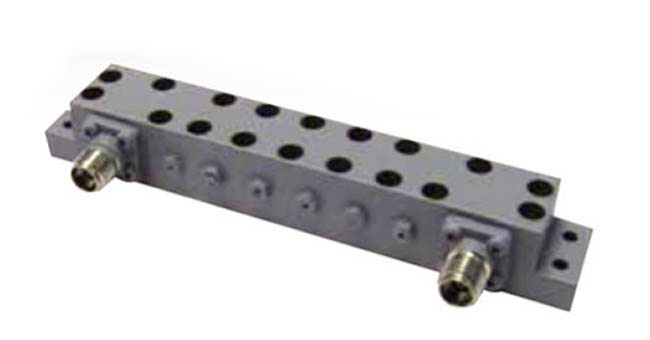

When your system requires a low-pass filter, turn to Mercury Systems for a product you can trust. Leveraging our system knowledge and filter experience, we can help you find the best standard product or develop a custom filter for your specific application. Our filter capabilities include combline, waveguide, lumped element and printed all supported with advanced in-house services such as solder and thin-film assembly, a machine shop, automated electrical testing and environmental screening.

Scroll Arrow

Low-Pass Filters

Model Number Sortable column, activate to sort column ascending Passband Start (MHz) Sortable column, activate to sort column ascending Passband Stop (MHz) Sortable column, activate to sort column ascending Loss (dB) Sortable column, activate to sort column ascending Size (inches) Sortable column, activate to sort column ascending Connectors Sortable column, activate to sort column ascending Datasheet
U3931 405 460 0.3 1.5 x 1.5 x 8.0 "N" Female PDF
C3903 1 4400 1 0.5" di x 2.75" long SMA Female PDF
S9305 1 3300 0.5 0.5 x 0.5 x 2.0 SMA Female PDF
L3706 40 2500 0.2 0.75 x 0.75 x 2.5 SMA Female PDF
C3705 1 7000 0.5 0.25" di x 1.5" long SMA Female PDF
X3906 1 8000 1 0.5 x 0.9 x 5.0 SMA Female PDF
U3929 1 50 0.7 1.0 x 1.0 x 7.0 SMA Female PDF
U3930 1 300 0.5 1.0 x 1.0 x 3.0 SMA Female PDF
S3906 1900 3050 0.25 0.5 x 0.5 x 3.5 SMA Female PDF
S3910 2200 2300 0.15 0.5 x 0.5 x 1.85 SMA Female PDF
Ku3905 14400 17300 0.25 1.3" x 1.3" x 2.5" WR-62 Flange PDF
U3510 1 125 0.5 1.0 x 2.0 x 8.0 "N" Female PDF
S3917 1900 3050 0.25 0.5 x 0.5 x 3.5 "N" Female PDF


Contact Us

Have a question or custom design requirement? Contact us to speak with our team of experts standing by.
