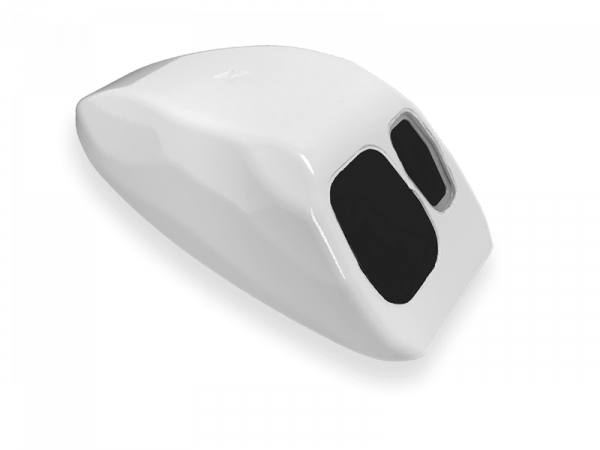

LFD3506 Lexavia Enhanced Vision System (EVS)

Dual Long-Wave Infrared Sensor

Part of the Lexavia Enhanced Vision System series, the LFD3506 leverages the industry’s most advanced infrared sensor technology integrated into a compact and lightweight aerodynamic housing. Using state-of-the-art imaging algorithms, the LFD3506 provides automatically blended high-definition long-wave infrared (LWIR) and low-light visible sensor imagery, offering excellent situational awareness at a surprisingly affordable cost.

View Datasheet

Specifications

Model LFD3506

Depth (in)

  • 8.43

Width (in)

  • 3.72

Height (in)

  • 2.11

Weight (lb)

  • 1.3

Field Of View

  • 32°H X 26°V



Video Output

  • NTSC or PAL

Resolution

  • 1280 x 1024 Low-Light Visible, 1280 x 720 HD Full-Color, 640 X 512 High-Res LWIR

Data I/O

  • ARINC 429, Ethernet, RS-232, RS-422, RS-485

Input Voltage

  • 12-28 VDC
