RESmini XR6

Data center in a briefcase to host sensitive missions in theater

  • slide
  • slide

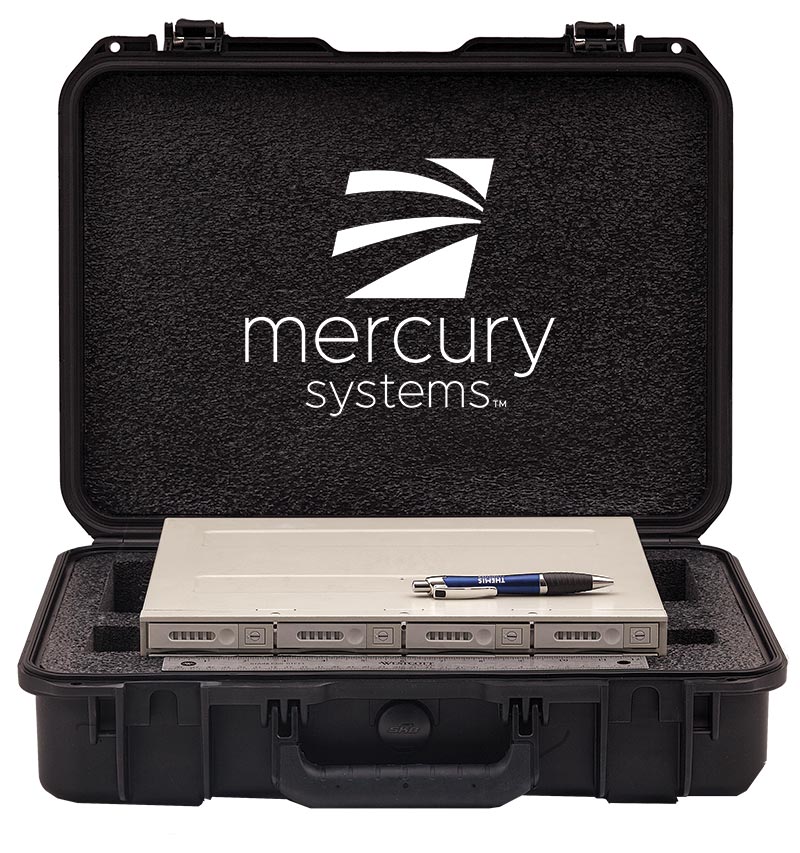

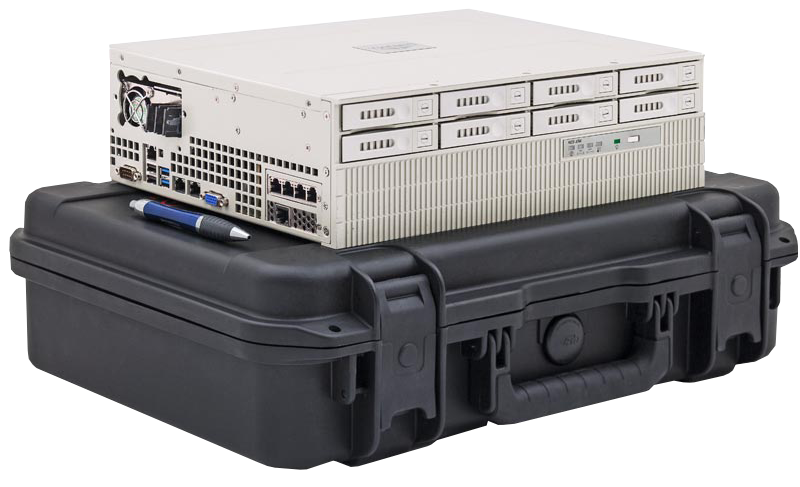

Data Center in a Briefcase

A tactical cloud that can host sensitive missions in theater and operate on almost any power source, the RESmini XR6 packages a single Intel® Xeon® scalable processor socket with up to 28 cores in a 15lb subrack form factor. An optional FAA-compliant UPS power case provides over 100min of autonomous operation, while expansion slots and multiple I/O offer operators maximum configuration versatility for current and future operations.

DOWNLOAD RESMINI XR6 DATASHEET

CONFIGURE YOUR SERVER

Features
  • Single Intel® Xeon® Scalable Processor with up to 28 cores
  • Up to 384GB GB DDR4 ECC and 240TB Storage
  • Up to 2 PCIe 3.0 slots
  • MIL-STD: 810G, 901D, 167-1
  • FAA Compliant UPS Power Case Option
Specifications
  • Single Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPU with up to 28 cores
  • Up to 384GB DDR4 ECC Memory

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available

Expansion & Modular Maintainability

  • Up to 2 low profile, half-length PCIe 3.0 cards
  • 4 fixed fans

Input/Output Versatility

Front Access

  • 8 Removable, Hot Pluggable, 2.5" SATA/SAS3 drives

Side Access

  • 1 Power Switch
  • 2 10GBase-T Ethernet Ports (RJ45)
  • 2 USB 3.0
  • 2 USB 2.0
  • 1 IPMI 2.0
  • 1VGA Graphic Port

Rear Access

  • Single 110/220V VAC (50/60Hz, 400Hz)
  • Single 18-36 VDC, 32 Amps
  • Single 9-18 VDC, 74 Amps


Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 8% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.7Grms, 10Hz to 2000 Hz (SSD)

Non-Operating

  • Temperature: -40°C to 70°C
  • Humidity: 5% to 95% (non-condensing)

Mechanical

  • Height: 4 inches (102mm)
  • Width: 13.5 inches (343mm)
  • Depth: 11 inches (273mm)
  • Weight (Typical)*: 15lb (6.8kg)

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.


Operate Anywhere. Everywhere.

The RESmini can operate on almost any power source, including batteries, and be safely transported back home. 10GbE ports, expansion slots and multiple I/O offer operators maximum configuration versatility for current and future operations. The RESmini operates in 0°C to +50°C temperatures, with greater temperature extremes available for special configurations. Advanced thermal and mechanical design features provide superior resilience to shock, vibration, dust, sand and temperature extremes. For applications that require autonomous operation, an optional UPS Power Case can provide over 100 minutes of autonomous run-time, enabling operation in virtually any power environment.


Autonomous Operation

The RESmini can be fully integrated within a FAA Carry-On Compliant UPS Power Case which provides for over two hours of independent operation without a power source. Designed by Acumentrics™ to be completely autonomous and flexible, the system automatically adjusts to the AC power on hand and can also run on a 12/28 volt DC power source commonly found on an aircraft, military vehicle or light commercial vehicle.

  • UN-DOT 38.3 for FAA compliance
  • Military Standard Specifications: MIL-STD-810G, MIL-STD 461

Application Highlight:

Streamlining Diagnoses and Treatment for Communities in Need

Processing and storing data from vital medical imaging equipment running in over 30 underdeveloped countries, our data center in a briefcase is helping RAD AID speed up diagnosis and treatment for critical illnesses such as cancer, heart disease and maternal-infant complications. Portable and powered via battery, our RESmini functions in remote locations even those that lack reliable power. With 8 storage drives, the system can save thousands of patient images, allowing radiologists to serve multiple patients at once.
