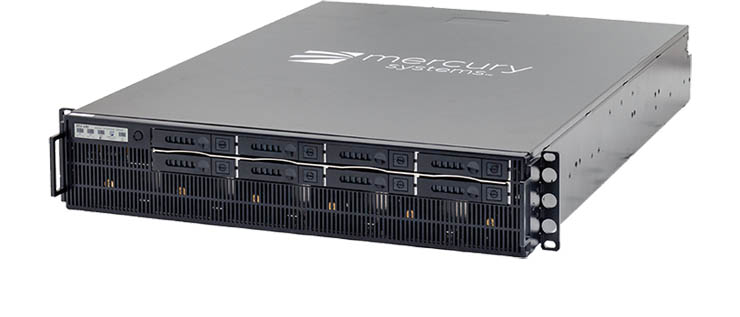

RES-XR6 2U, 8 Drive 23 Inch Rugged Standard Density Server

Quad Intel® Xeon® Scalable processors, 6TB memory and 8 disk drives

  • slide
  • slide
  • slide

23 Inch Deep, 8 Drive, Rear I/O Server

Featuring quad Intel® Xeon® Scalable Processors, 6TB memory, up to 240TB of storage and enhanced reliability features, the RES-XR6 2U Quad accelerates compute-intensive workloads for virtualization and applications such as signal intelligence, cryptography, AI, surveillance, analytics, communications and audio/video processing.

DOWNLOAD RES-XR6 2U QUAD 8 DRIVE 23 INCH DATASHEET

CONFIGURE YOUR SERVER

Designed for the Field



The system incorporates advanced thermal and mechanical design features to provide superior resilience to shock, vibration, dust, sand and temperature extremes. Dual redundant, hot swappable AC or DC power supplies provide high availability while a specially designed dust cover, new memory retention + vibration dampeners and optional tamper-evidence features offer users extra security for operations on the move.

Space Optimized Performance



Optimized for size, weight, and power (SWaP), the system weighs only 25 lbs and is 14" deep. A robust array of high speed I/O, storage options, enhanced security features and expansion choices allow users maximum flexibility for current and future system requirements.

Features
  • Quad Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 6TB DDR4 ECC memory
  • 8 hot-swappable disk drives
  • 7 PCIe 3.0 cards
  • MIL-STD: 810G, 901D, 167-1, 461
  • Two onboard 1Gbit ethernet (optional 10Gbit ethernet) ports

The system incorporates advanced thermal and mechanical design features to provide superior resilience to shock, vibration, dust, sand and temperature extremes.

Specifications
  • Quad Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 6TB memory with 64 DIMM slots

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available
  • TPM 1.2 or 2.0 Support

Expansion and Modular Maintainability

  • Onboard M.2 SATA slot
  • PCIe 3.0 card options (horizontal):
    • Up to 7 full-height PCIe cards (mix of x4, x8, and x16)
    • Up to 5 full-height PCIe 3.0 x16 cards

Input/Output Versatility

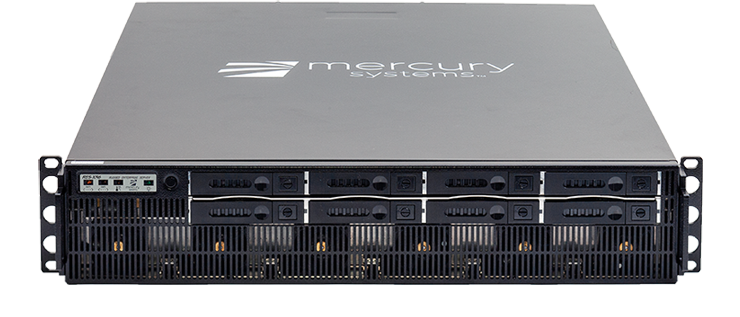

Front Access

  • 8 Removable, Hot Pluggable, 2.5" SATA/SAS3 drives, U.2 NVME option available
  • 1 Power Switch

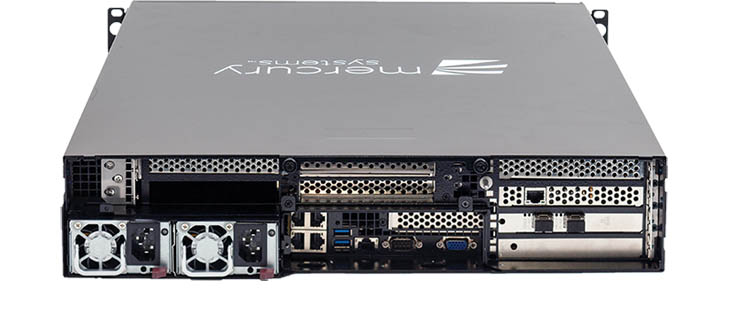

Rear Access

  • 4 1GBaseT Ethernet Ports (RJ45)
  • 2 USB 3.0
  • 1 IPMI 2.0
  • 1 VGA Graphic Port

Power Supply Options

  • Dual Redundant 100/240V VAC (50/60Hz)
  • Power Consumption: 1600W

Additional Options

  • Shock Pins
  • Front Door Filter
  • Slide Rails
  • Tamper-Evidence Features


Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 55°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 8% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.76Grms, 10Hz to 2000 Hz (SSD)

Non-Operating

  • Temperature: -40°C to 70°C
  • Humidity: 5% to 95% (non-condensing)

Mechanical

  • Height: 2U or 3.5 inches (87.8mm)
  • Width: 17 inches (438mm)
  • Depth: 23 inches (583mm)
  • Weight (Typical)*: 30 pounds (13.6kg)
  • 19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.
