RES-XR6 3U, 8-16 Drive 17 Inch Rugged Standard Density Server

Dual Intel® Xeon® Scalable processors, 2TB memory and up to 16 disk drives

  • slide
  • slide
  • slide

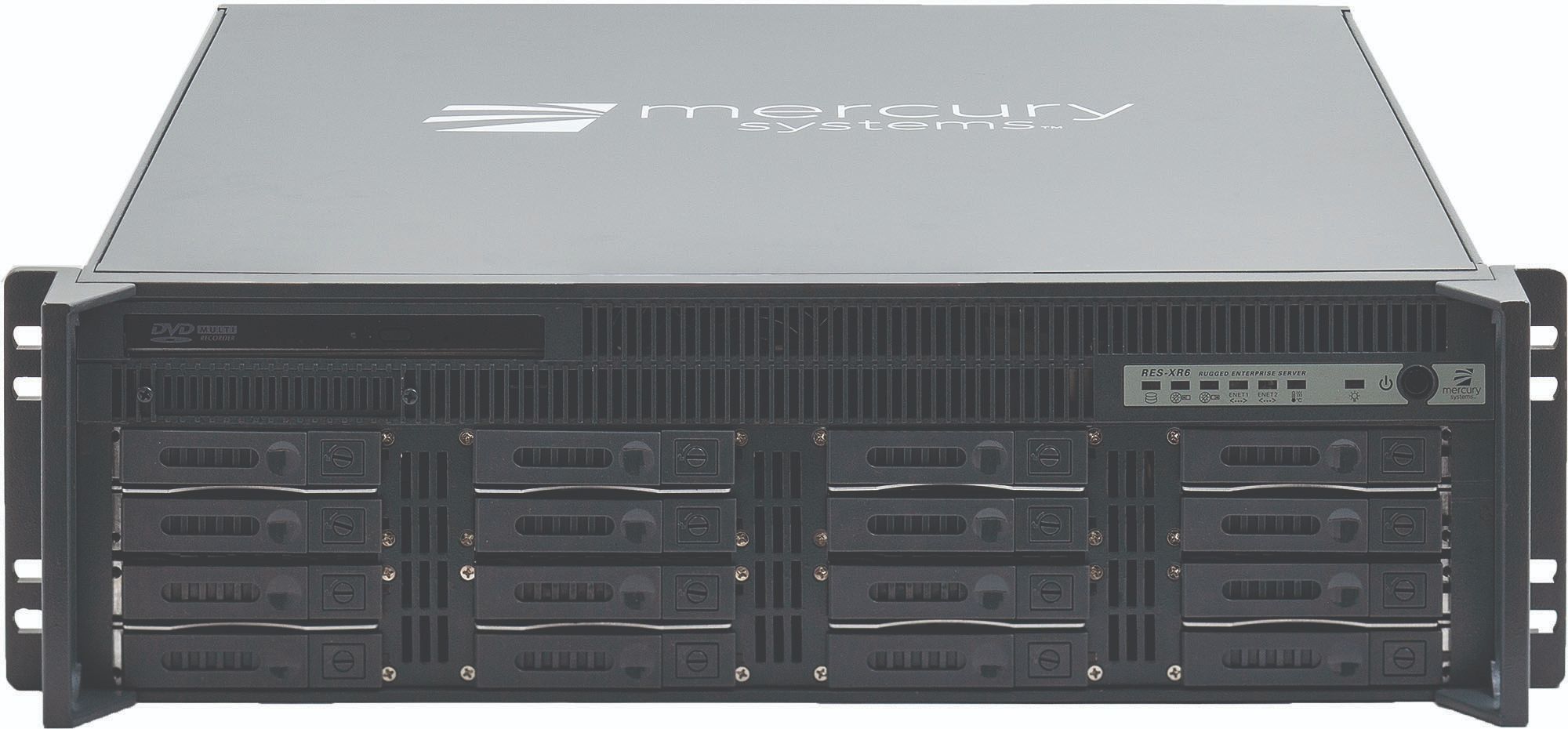

17 Inch Deep, 8-16 Drives, Rear I/O Server

Featuring dual Intel® Xeon® Scalable processors with AVX512, 2TB DDR4 ECC memory and up to sixteen disk drives, the RES-XR6 3U accelerates compute intensive workloads for applications such as signal intelligence, cryptography, AI, surveillance, sensor fusion, analytics, communications and audio/video processing.

This product is not recommended for new designs. Visit our RES X07 or RES X08 servers for new-design applications.

ASK A QUESTION

Designed for the Field



The system incorporates advanced thermal and mechanical design features to provide superior resilience to shock, vibration, dust, sand and temperature extremes. Dual redundant, hot swappable AC or DC power supplies provide high availability while a specially designed dust cover, new memory retention + vibration dampeners and optional tamper-evidence features offer users extra security for operations on the move.

Space Optimized Performance



Optimized for size, weight, and power (SWaP), the system weighs only 29 lbs and is 17” deep. A robust array of high speed I/O, storage options, enhanced security features and expansion choices allow users maximum flexibility for current and future system requirements.

Features
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 2TB DDR4 ECC memory
  • 16 disk drives
  • 6 PCIe 3.0 cards
  • MIL-STD: 810G, 901D, 167-1, 461
  • 2 1GBaseT or 10GBaseT ethernet ports (RJ45)
Specifications
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 2TB memory with 8 DIMM slots

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available
  • TPM 1.2 or 2.0 Support

Expansion and Modular Maintainability

  • Up to 6 full-height PCIe 3.0 cards (8 Drive)
    • 4 PCIe 3.0x16 (2 10" length, 2 half length)
    • 2 PCIe 3.0x8 10" length
  • Up to 6 PCIe 3.0 cards (16 Drive)
    • 2 PCIe 3.0 x16 10" Length Full Height
    • 3 PCIe 3.0 x8 10" Length Full Height
    • 1 PCIe 3.0 x4 Low Profile
  • 2 Hot Swappable Fans

Input/Output Versatility

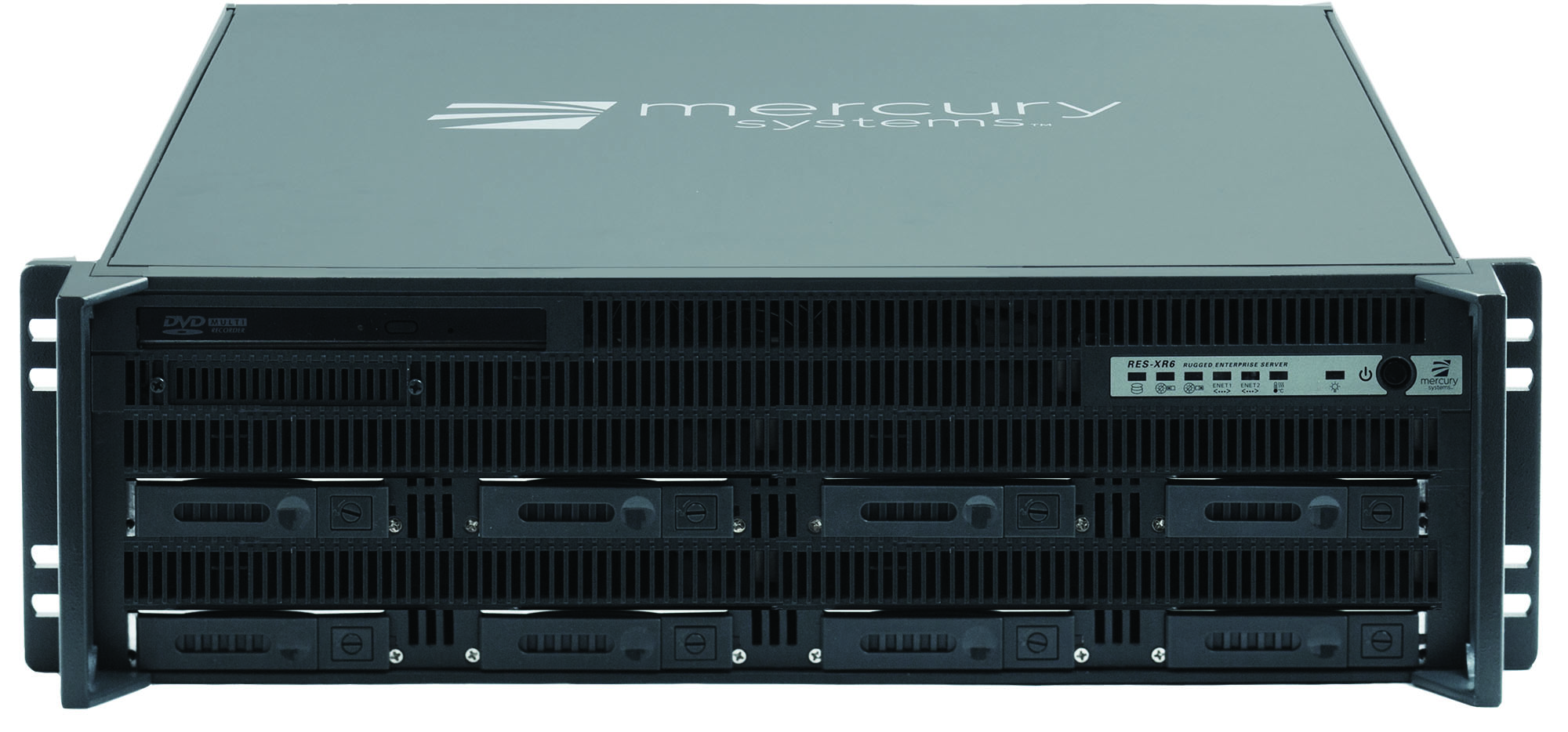

Front Access

  • Up to 16 Removable, Hot Pluggable, 2.5” SATA/SAS3 drives, U.2 NVME option available
  • 1 CD-RW/DVD-RW Drive, Blu-Ray Option
  • 1 Power Switch

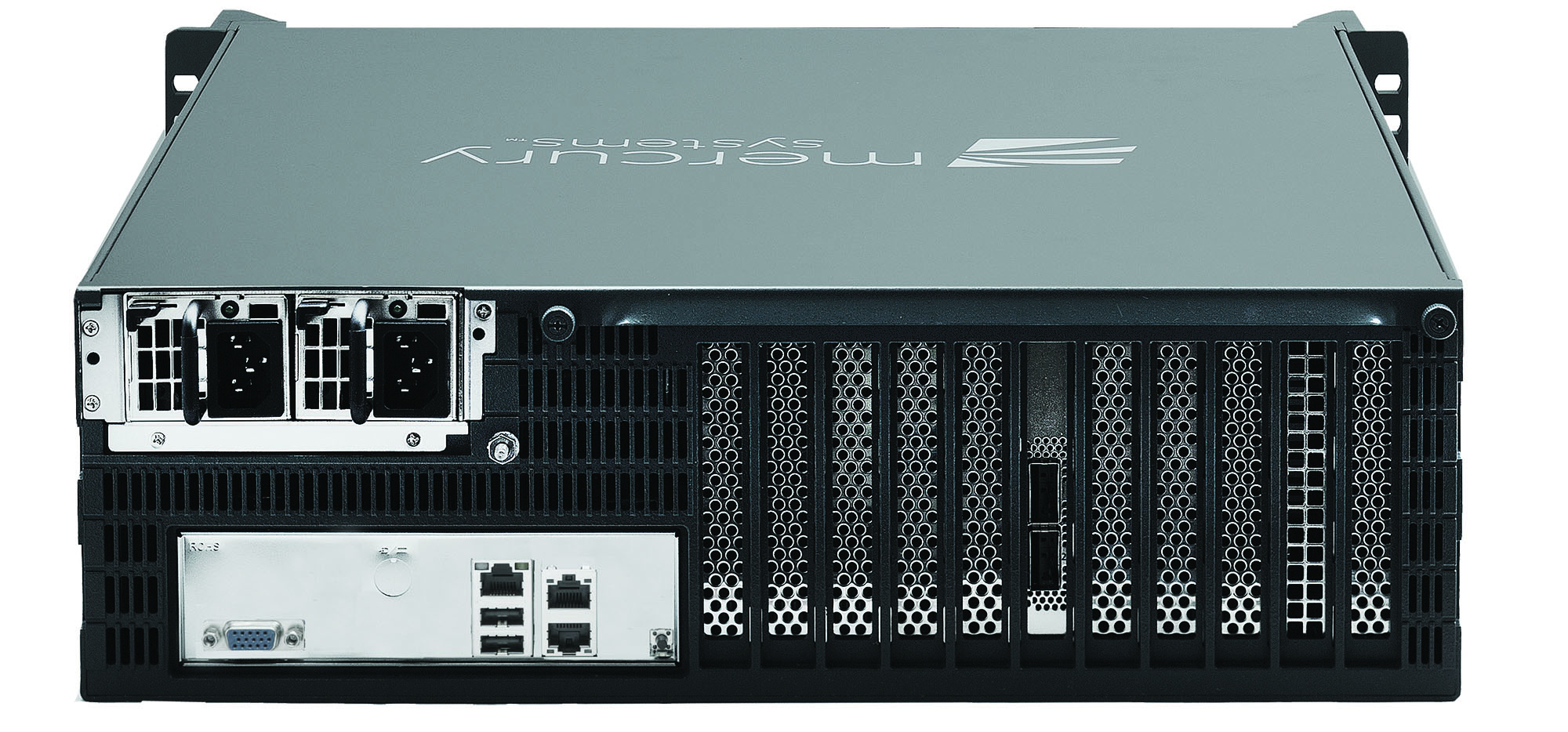

Rear Access

  • 2 1GBaseT or 10GBaseT Ethernet Ports (RJ45)
  • 1 IPMI 2.0
  • 1 VGA Graphics Port
  • 1 Serial Port (DB9) (optional)
  • 2 USB 2.0
  • Additional USB 2.0/3.0 (optional)

DOWNLOAD 8 DRIVE DATASHEET

DOWNLOAD 16 DRIVE DATASHEET

Power Supply Options

  • Single or Redundant 100/240V VAC (50/60Hz, 400Hz)
  • Single or Redundant 10-36 VDC, 32 Amps
  • Single or Redundant 36-72 VDC, 18 Amps
  • MIL-STD 461

Additional Options

  • Shock Pins
  • Slide Rails
  • Tamper-Evidence Features


Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 8% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.76Grms, 10Hz to 2000 Hz (SSD)

Non-Operating

  • Temperature: -40°C to 70°C
  • Humidity: 5% to 95% (non-condensing)

Mechanical

  • Height: 3U or 5.25 inches (133.35mm)
  • Width: 17 inches (432mm)
  • Depth: 17 inches (432mm)
  • Weight (Typical)*: 29 pounds (13.1kg)
  • 19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.
