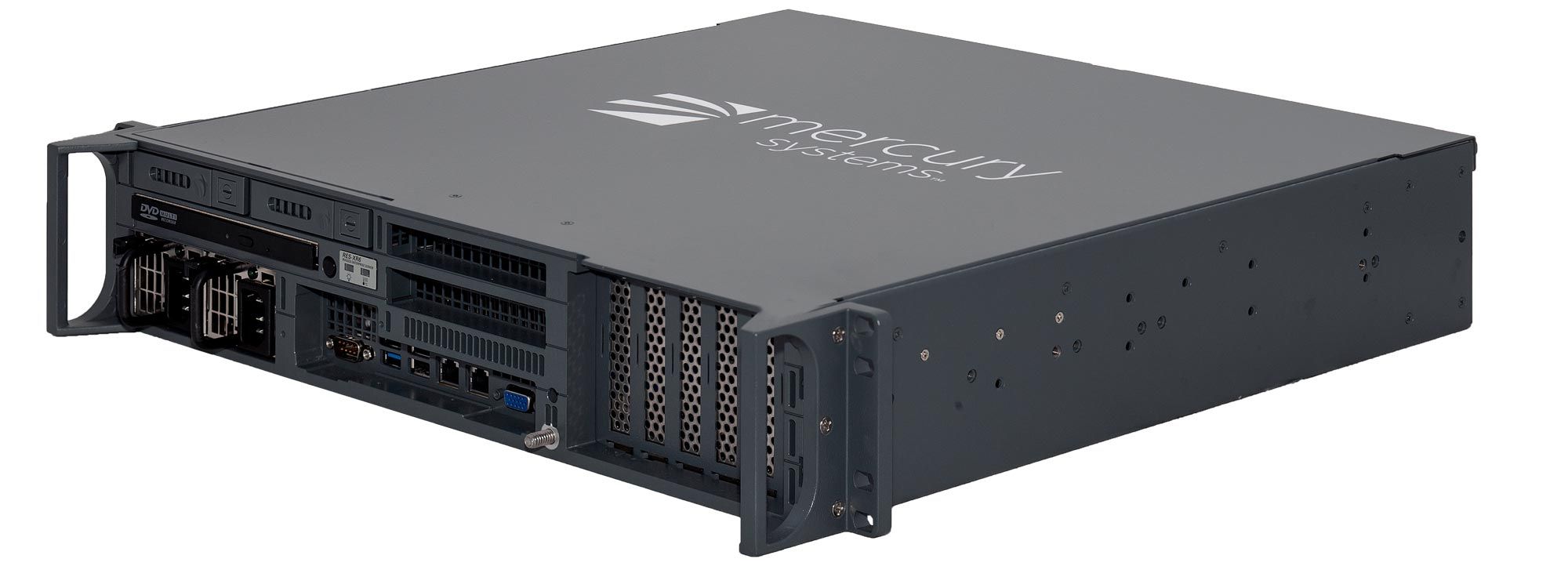

RES-XR6 2U, 2 Drive 14 Inch Rugged Standard Density Server

Dual Intel® Xeon® Scalable processors, 1TB memory and 2 disk drives

  • slide
  • slide
  • slide

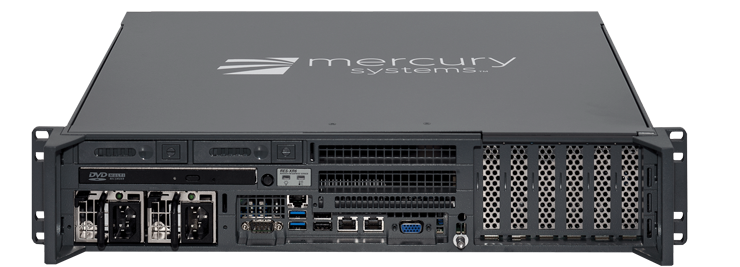

14 Inch Deep, 2 Drive, Front I/O Server

Featuring dual Intel® Xeon® Scalable processors with AVX512, 1TB DDR4 ECC memory, 60TB of storage in two disk drives, the RES-XR6 2U accelerates compute intensive workloads for applications such as signal intelligence, cryptography, AI, surveillance, sensor fusion, analytics, communications and audio/video processing.

DOWNLOAD RES-XR6 2U, 2 DRIVE 14 INCH DATASHEET

CONFIGURE YOUR SERVER

Designed for the Field



The system incorporates advanced thermal and mechanical design features to provide superior resilience to shock, vibration, dust, sand and temperature extremes. Dual redundant, hot swappable AC or DC power supplies provide high availability while a specially designed dust cover, new memory retention + vibration dampeners and optional tamper-evidence features offer users extra security for operations on the move.

Space Optimized Performance



Optimized for size, weight, and power (SWaP), the system weighs only 25 lbs and is 14" deep. A robust array of high speed I/O, storage options, enhanced security features and expansion choices allow users maximum flexibility for current and future system requirements.

Features
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 1TB DDR4 ECC memory
  • 2 disk drives
  • 6 PCIe 3.0 cards
  • MIL-STD: 810G, 901D, 167-1, 461
  • 2 1GBaseT ethernet ports (RJ45)
Specifications
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold, or Platinum CPUs with up to 28 cores per processor
  • Up to 1TB memory with 8 DIMM slots

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available
  • TPM 1.2 or 2.0 Support

Expansion and Modular Maintainability

  • Up to 6 vertical PCIe 3.0 half-height cards
    • PCIe 3.0 Card Options:
      • 2 PCIe 3.0 x16, 2 PCIe 3.0 x8 and 1 PCIe 3.0 x4 (in x8 slot)
      • Up to 2 horizontal PCIe 3.0 full-height cards,1 PCIe 3.0 x16 and 1 PCIe 3.0 x8

Input/Output Versatility

Front Access

  • 2 Removable, Hot Pluggable, 2.5” SATA/SAS3, U.2 NVME option available
  • 1 CD-RW/DVD-RW Drive, Blu-Ray Option
  • 1 Power Switch
  • 2 1GBaseT Ethernet Ports (RJ45)
  • 3 USB (2 USB 2.0 + 1 USB 3.0)
  • 1 IPMI 2.0
  • 1 VGA Graphic Port

Power Supply Options

  • Single or Redundant 100/240V VAC (50/60Hz, 400Hz)
  • Single or Redundant 10-36 VDC, 32 Amps
  • Single or Redundant 36-72 VDC, 18 Amps
  • MIL-STD 461

Additional Options

  • Shock Pins
  • Slide Rails
  • Tamper-Evidence Features


Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 8% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.76Grms, 10Hz to 2000 Hz (SSD)

Non-Operating

  • Temperature: -40°C to 70°C
  • Humidity: 5% to 95% (non-condensing)

Mechanical

  • Height: 2U or 3.5 inches (88.9mm)
  • Width: 17 inches (432mm)
  • Depth: 14 inches (355mm)
  • Weight (Typical)*: 25 pounds (11.3kg)
  • 19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.
