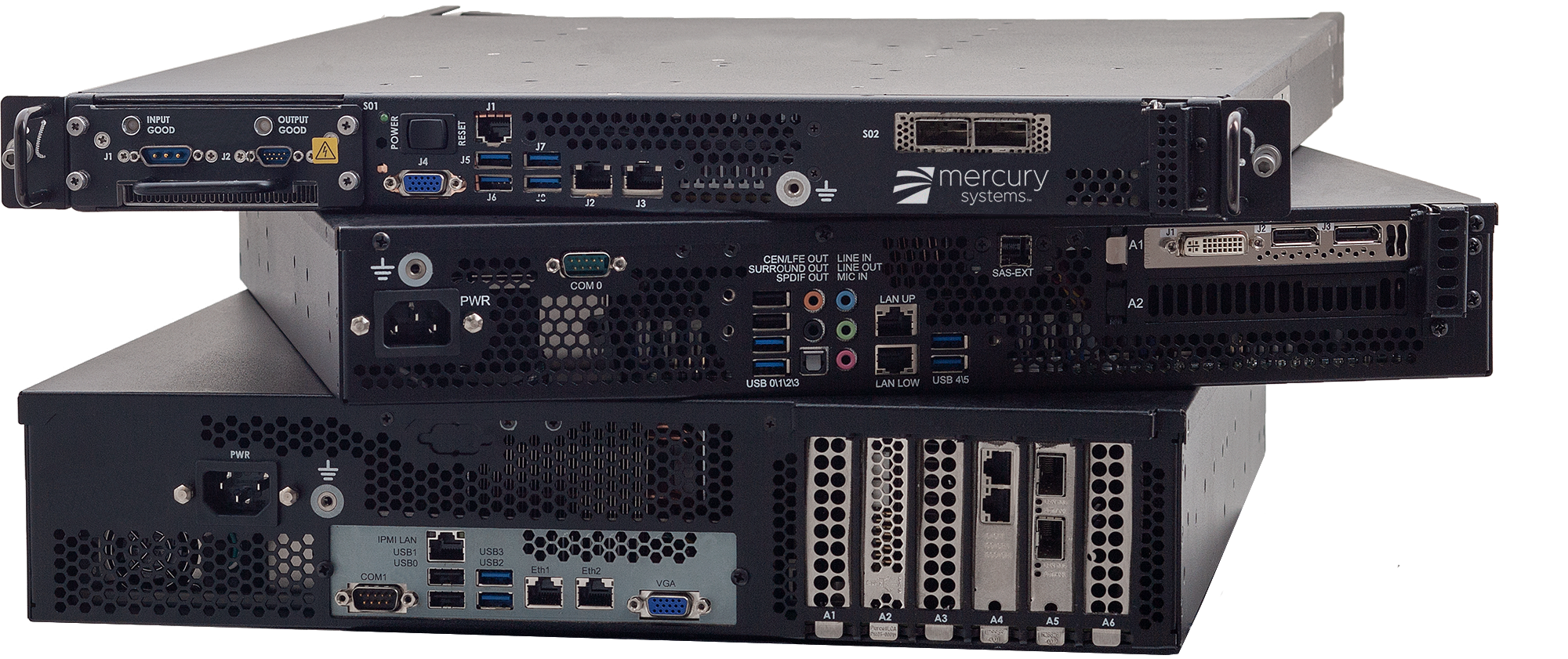

RES-XR6 3U, 16 Drive 20 Inch Rugged Standard Density Server

Dual Intel® Xeon® Scalable processors, 1.5TB memory and 16 disk drives

  • slide

20 Inch Deep, 16 Drive, Front I/O Server

The RES-XR6 2U packages dual Intel® Xeon® Scalable processors with 28 cores and 1.5TB DDR4 ECC memory in a 43lb, 20" deep chassis. Manufactured in AS5553 compliant, AS9100D facilities, the quiet system meets multiple military environment specifications including airborne and structural noise.

DOWNLOAD RES-XR6 3U, 16 DRIVE 20 INCH DATASHEET

CONFIGURE YOUR SERVER

Patented Technology Options



In addition to memory stabilization, this server features numerous patented technology options including:

- System control module for remote management
- Aeroloc Baffle system for low airflow operations
- Remote battery bypass that enables BIOS battery replacement without system shutdown



Stealth and Flexibility



A robust array of high speed I/O, storage options, expansion choices and security features deliver maximum flexibility for current and future system requirements.

Features
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 240TB of storage in 16 disk drives
  • Up to 6 PCIe 3.0 x16 or 1 PCIe 3.0 x16 + 10 PCIe 3.0 x8 cards
  • MIL-STD: 810G, 901D, 167-1, 1474D, 740-2, 461F
  • Patented memory stabilization
Enhancement Options

Current available enhancement options include:

  • Patented technologies (mentioned above)
  • Removable PCIe card cage for simplified sparing
  • Read/Write switches to prevent accidental rewrite
  • CAC readers
  • Slide rails
  • Front door filter

Additional features, testing and certifications are available upon customer request.

Specifications
  • Dual Intel® Xeon® Scalable Bronze, Silver, Gold or Platinum CPUs with up to 28 cores per processor
  • Up to 1.5TB 2667MHz memory

Patented Technologies

  • Memory stabilization
  • Aeroloc baffle system
  • System control module for remote management

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available
  • TPM 1.2 or 2.0 Support

Expansion and Modular Maintainability

  • PCIe 3.0 card options:
    • Up to 6 PCIe 3.0 x16
    • 1 PCIe 3.0 x16 + 10 PCIe 3.0 x8 cards

Input/Output Versatility

Front Access

  • Up to 16 Removable, Hot Pluggable, 2.5" SATA/SAS3 drives, U.2 NVME option available
    can configure with up to (8) 15mm or (16) 7mm (SATA) high drives
  • 1 Power/Reset Switch
  • 1 Power On LED
  • 1 Quick Change CMOS Battery
  • 1 Blu-Ray Player or DVD/CD ROM drive (optional)
  • 2 10GBaseT Ethernet Ports (RJ45)
  • 2 USB 3.0
  • 1 RS-232 (optional)
  • 1 IPMI 2.0 (RJ45)
  • 1 VGA Graphic Port

Rear Access

  • 1 CFM Switch (optional)
  • 2 USB 3.0 (optional)
  • 1 RS-232 (optional)



Power Supply Options

  • Single 100/240V VAC (47/63Hz, 400Hz)
  • Single 10-36 VDC, 32 Amps
  • Single 36-72 VDC, 18 Amps
  • MIL-STD 461, 704F, 1399-300B

Additional Options

  • Front Door Filter
  • Slide Rails
  • CAC Card Reader
  • Read/Write Switches to prevent accidental rewrite


Environmental & Mechanical

MIL-STD / Industrial Specifications

  • MIL-STD 810G
  • Shock: MIL-STD 901D Grade A, EC 60068-2-27
  • EMI/RFI: MIL-STD 461F, CE102 standard
  • Vibration: MIL-STD 167-1, MIL-STD 810G, IEC 60068-2-64
  • Airborne Noise: MIL-STD 1474D
  • Structure Borne Noise: MIL-STD 740-2
  • Temperature: IEC 60068-2-2 test Bb, 60068-2-1 test Ab

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended Temperature: -15°C to 65°C
  • Humidity: 5% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.76Grms, 4Hz to 2000 Hz (SSD)
  • Altitude: 10,000 ASL

Non-Operating

  • Temperature: -40°C to 80°C
  • Humidity: 5% to 95% (non-condensing)
  • Altitude: 40,000 ASL
  • Conformal Coating: IPC-CC 830 (optional)

Mechanical

  • Height: 3U or 5.25 inches (133.35mm)
  • Width: 17 inches (431.8mm)
  • Depth: 20 inches (508mm)
  • Weight (Typical)*:
    • Steel Chassis: 43lbs (19.5kg)
  • Cooling: Internal fan-cooled (rear vent) front to rear
  • 19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.
