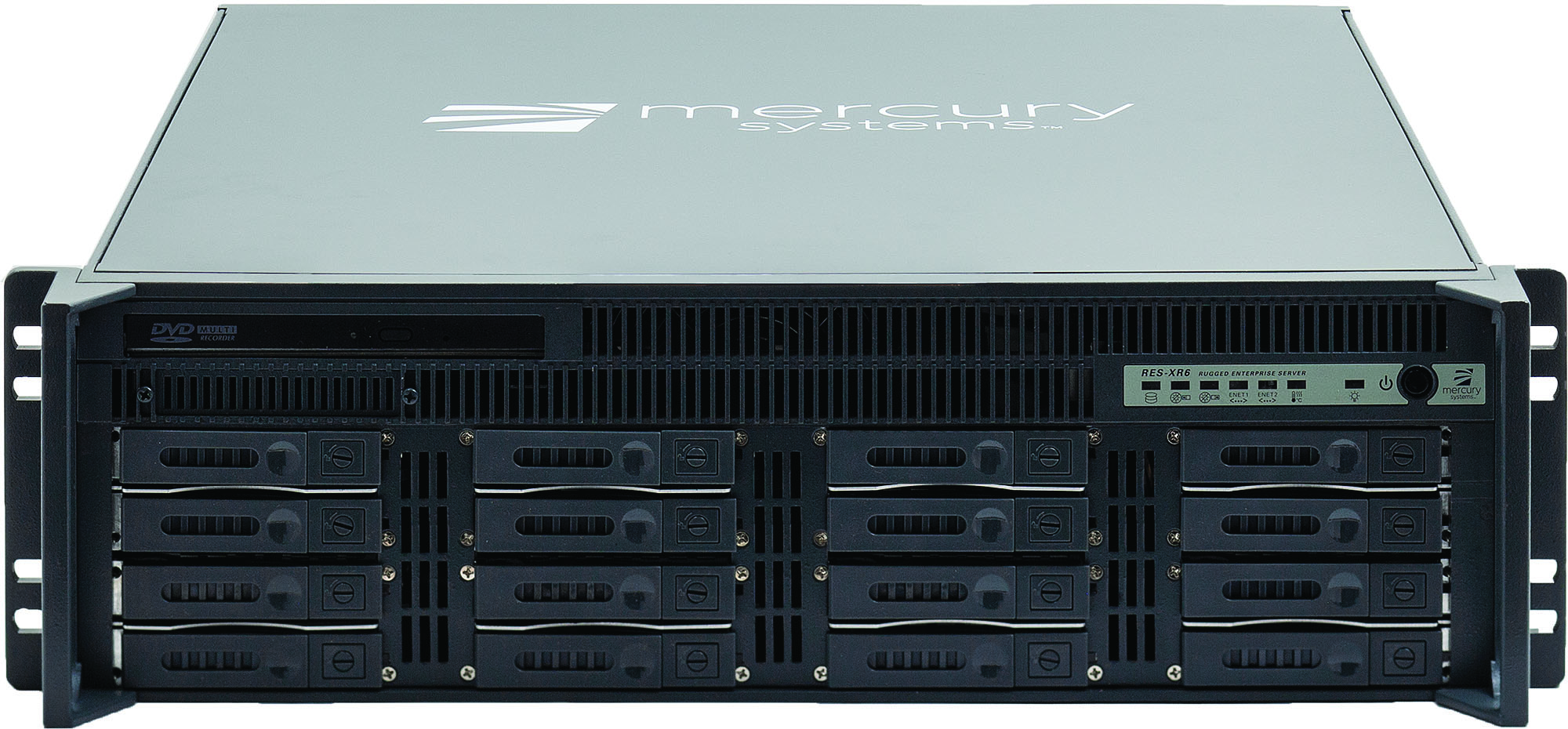

RES-XR6 3U 16dr Rugged Server - 17"

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.

  • slide

17 Inch Deep, 16 Drive, Rear I/O Server

Featuring up to two Intel® Xeon® Scalable processors with AVX512, 2TB DDR4 ECC memory, 480TB of storage in sixteen disk drives, the RES-XR6 3U accelerates compute intensive workloads for applications such as signal intelligence, cryptography, AI, surveillance, sensor fusion, analytics, communications, and audio/video processing.



Designed for the Field


The system incorporates advanced thermal and mechanical design features to provide superior resilience to shock, vibration, dust, sand, and temperature extremes. Dual redundant, hot swappable AC or DC power supplies provide high availability while a specially designed dust cover, new memory retention + vibration dampeners, and optional tamper-evidence features offer users extra security for operations on the move.

Space Optimezed Performance


Optimized for size, weight, and power (SWaP), the system weighs only 25 lbs, and is 14" deep. A robust array of high speed I/O, storage options, enhanced security features, and expansion choices allow users maximum flexibility for current and future system requirements.

  • Up to 2 Intel Xeon Scalable Bronze, Silver, Gold, or Platinum CPUs
  • Up to 2TB DDR4 ECC Memory
  • 16 Disk drives and 6 PCIe 3.0 cards
  • MIL-STD: 810G, 901D, 167-1, 461

2 Intel Xeon Scalable Bronze, Silver, Gold, or Platinum CPUs
with up to 28 cores per processor
Up to 2TB memory with 8 DIMM slots

Management and Operating System
Windows®, Linux®, VMWARE® and other hypervisors
IPMI v2.0, Redfish option available
TPM 1.2 or 2.0 Support

Expansion and Modular Maintability
Up to 6 PCIe 3.0 cards
     2 PCIe 3.0 x16 10" Length Full Height
     3 PCIe 3.0 x8 10" Length Full Height
     1 PCIe 3.0 x4 Low Profile

Input/Output Versatility
Front Access
16 Removable, Hot Pluggable, 2.5” SATA/SAS3 drives, U.2 NVME option available
1 CD-RW/DVD-RW/BD-RW Drive (Blu-Ray Optional)
1 Power Switch
Rear Access
2 1GbE (RJ45)
1 Dedicated Management Port (RJ45)
1 VGA Graphics Port
1 Serial Port (DB9) (optional)
1 CD-RW/DVD-RW/BD-RW Drive (optional)
1 Power Switch
2 USB 2.0
Additional USB 2.0/3.0 (optional)

Power Supply Options
Single or Redundant 100/240 VAC
Single or Redundant 10-36 VDC
Single or Redundant 36-72 VDC
Single MIL-STD-461 Option

Environmental & Mechanical

Temperature: 0°C to 50°C
Extended Temperature: -15°C to 65°C
Humidity: 8% to 95% (non-condensing)
Shock: 3 axis, 35g, 25ms
Vibration: 4.76Grms, 10Hz to 2000 Hz (SSD)
Temperature: -40°C to 70°C
Humidity: 5% to 95% (non-condensing)

Height: 3U or 5.25” inches (133.35mm)
Width: 17 inches (432mm)
Depth: 17 inches (432mm)
Weight (Typical)*: 29 pounds (13.1kg)
19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.
