RES AI XR6 3U, 8 Drive 21 Inch Rugged GPU Server

Dual Intel® Xeon® Scalable processors, 4 double-wide NVIDIA GPUs, 4TB memory and 8 disk drives

  • slide
  • slide
  • slide

Compact 21 Inch Deep, Rear I/O Supercomputing Server

Built from the ground up to provide edge computing capability previously reserved for the data center, Mercury’s RES AI 3U supercomputing server packs dual Intel® Xeon® Scalable processors, four double-wide NVIDIA Tesla GPUs, 4TB DDR4 ECC memory and 8 drives of storage in a 45lb server form factor.

DOWNLOAD RES AI XR6 3U, 8 DRIVE 21 INCH DATASHEET

CONFIGURE YOUR SERVER

Features
  • Up to four NVIDIA® Tesla® GPGPUs or Quadro® GPU
  • Dual Intel® Xeon® Scalable CPU with up to 26 cores per processor
  • Up to 4TB DDR4 ECC memory
  • Up to 240TB of storage with eight 2.5" front-access disk drives (SAS3, SATA or NVME)
  • 7 PCIe 3.0 cards
  • MIL-STD: 810G
  • Customizable with U.S. designed and manufactured motherboards and advanced security features
Specifications
  • Dual Intel® Xeon® Scalable CPUs with up to 28 cores per processor

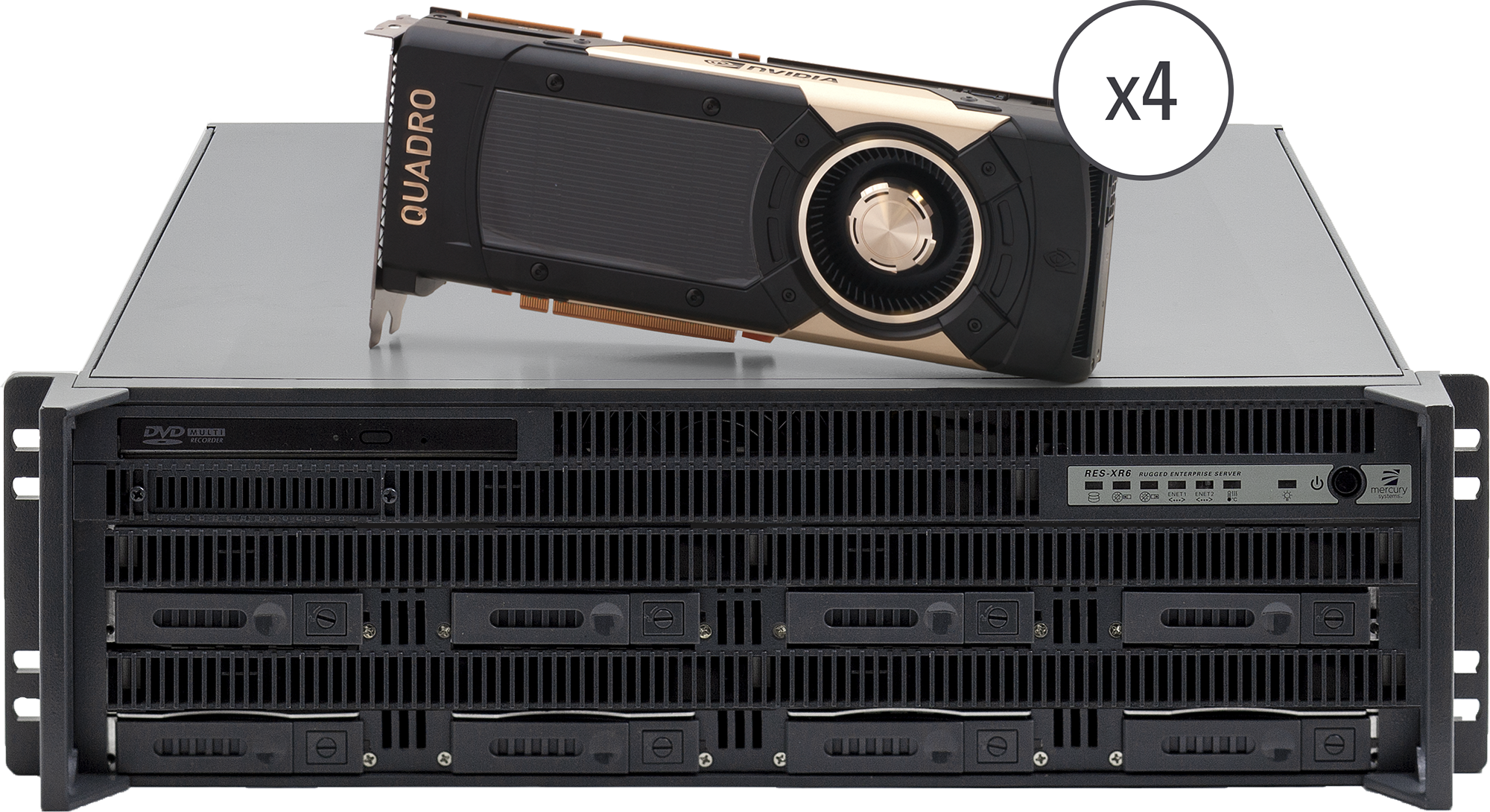

  • Up to 4 double-wide NVIDIA Tesla or Quadro GPU accelerators
  • Up to 4TB memory with 16 DIMM slots, 2933MHz RDIMM/LRDIMM

Management and Operating System

  • Windows®, Linux®, VMware® and other hypervisors
  • IPMI v2.0, Redfish option available
  • TPM 2.0 support
  • Optional RAID Controller for SAS3/SATA3

Expansion and Modular Maintainability

  • 2 Disk on Module (up to 128GB per DOM)
  • 7 PCIe 3.0 cards
    • 4 PCIe x16 GPU (double-width, FHFL) slots
    • 3 PCIe single-width, FHHL slots: 2 PCIe x16 + 1 PCIe x4 (in x8 slot)

Power Supply Options

  • Single or Redundant 100/240V VAC (47/63Hz, 400Hz)
  • Single or Redundant 10-36 VDC, 32 Amps
  • Single or Redundant 36-72 VDC, 18 Amps
  • MIL-STD 461

Input/Output Versatility

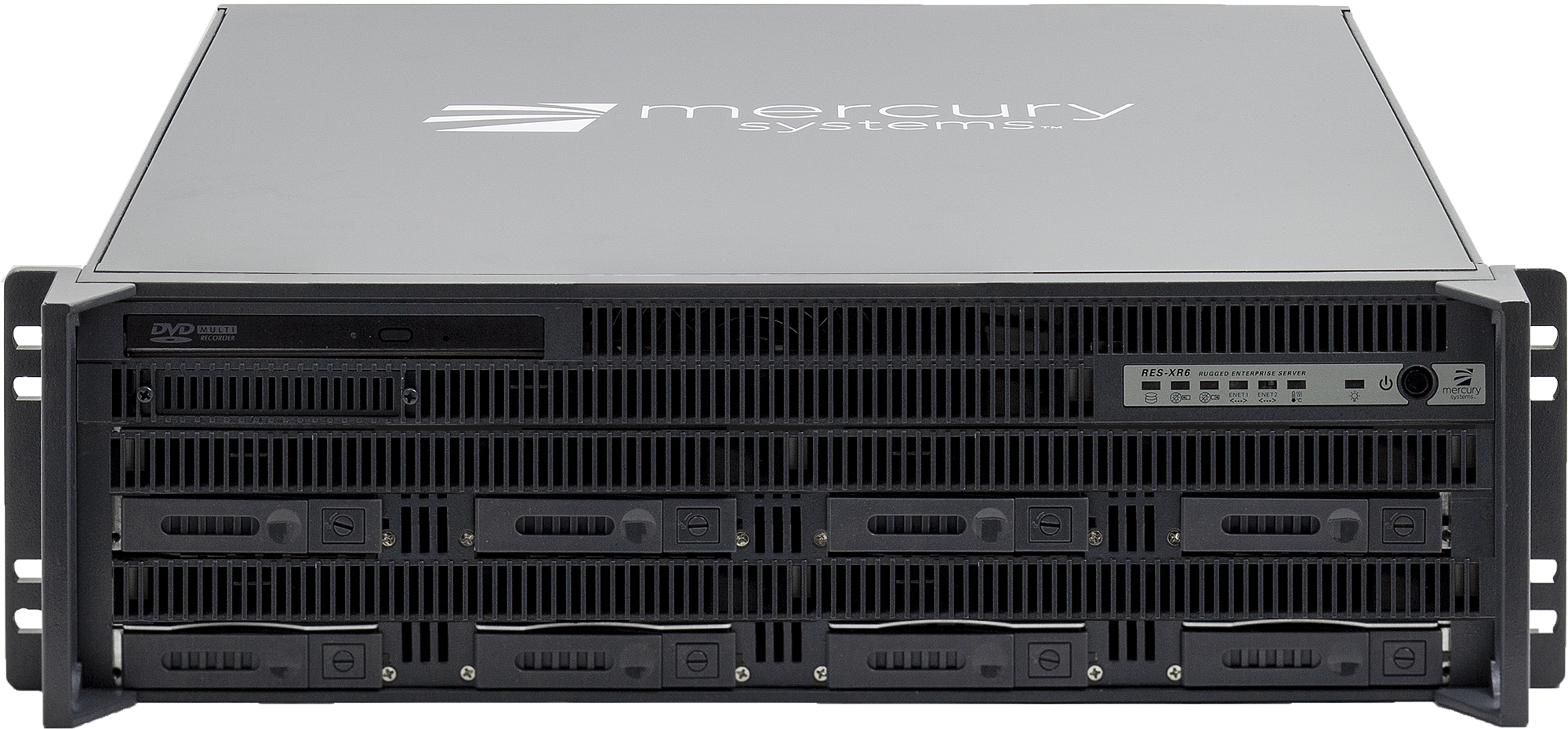

Front Access

  • 8 removable, hot pluggable drives, 2.5” SATA/SAS3, U.2 NVME option available
  • 1 power switch

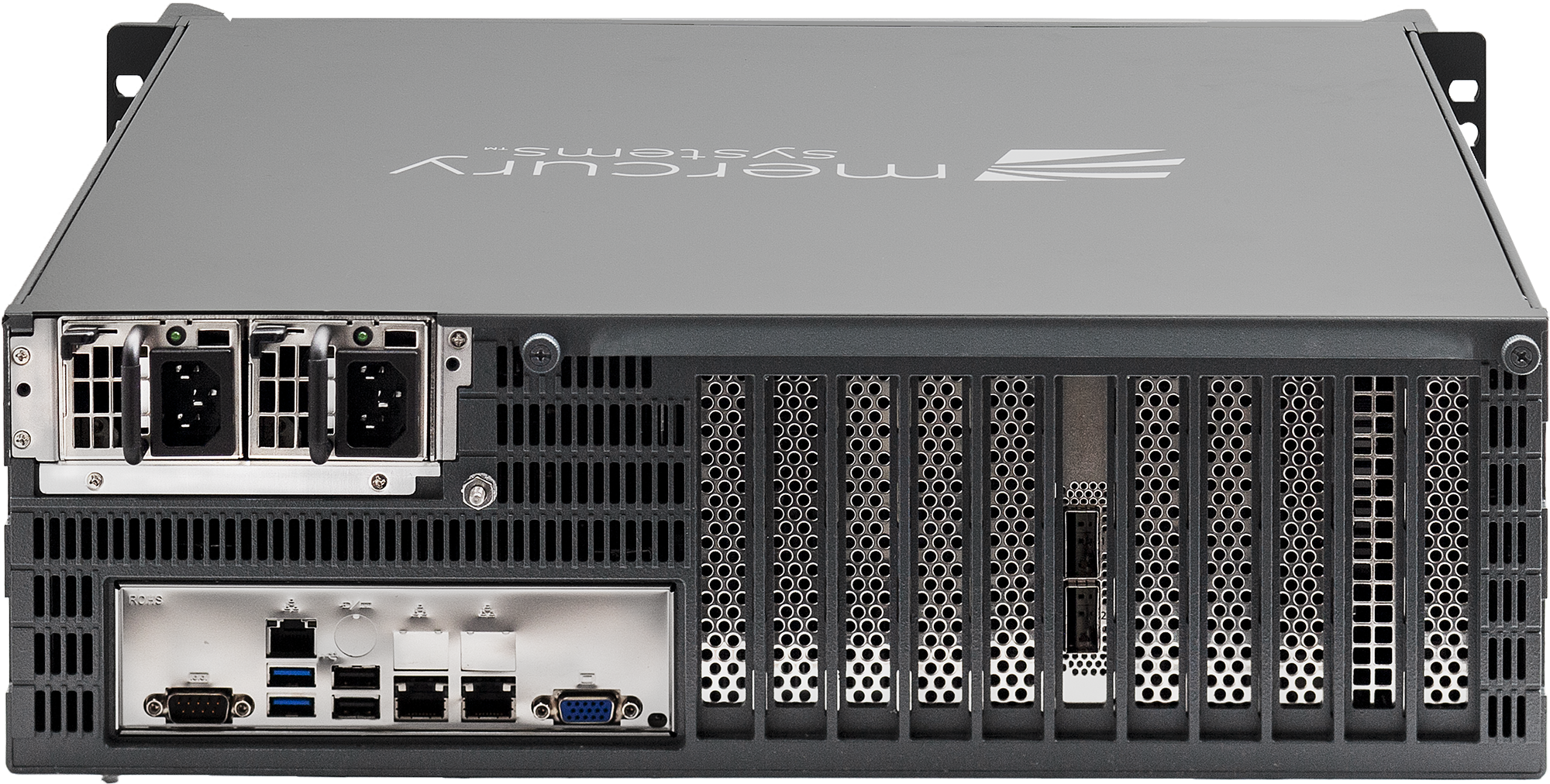

Rear Access

  • 2 10GBaseT Ethernet Ports (RJ45)
  • 2 USB 3.0
  • 2 USB 2.0
  • 1 IPMI 2.0
  • 1 VGA graphic port
  • 1 COM port

Additional Options

  • Shock pins
  • Front door filter
  • Slide rails


Environmental & Mechanical

Environmental*

Operating

  • Temperature: 0°C to 50°C
  • Extended temperature: -15°C to 65°C
  • Humidity: 8% to 95% (non-condensing)
  • Shock: 3 axis, 35g, 25ms
  • Vibration: 4.76Grms, 10Hz to 2000 Hz (SSD)

Non-Operating

  • Temperature: -40°C to 70°C
  • Humidity: 5% to 95% (non-condensing)

Mechanical

  • Height: 3U or 5.25 inches (133.35mm)
  • Width: 17 inches (433.3mm)
  • Depth: 21 inches (530mm)
  • Weight (Typical)*: 45 pounds (20.4kg)
  • Cooling: Internal fan-cooled (rear vent) front to rear
  • 19” rackmountable

* Mercury Systems designs all products to meet or exceed listed data sheet specifications. Some specifications including I/O profiles, weight, and thermal profiles are configuration dependent. Contact Mercury for information specific to your desired configuration requirements.

Maximize Throughput with Parallel Computing

Powered by four of the the latest NVIDIA® Volta architecture GPUs, RES AI 3U harnesses parallel processing to maximize throughput, boost productivity and push the boundaries of compute-heavy  mission-critical applications such as signal intelligence (SIGINT), cryptography, deep learning, artificial intelligence (AI), surveillance, sensor fusion, visualization, image processing, tracking and big data analytics. Other GPU options are available.

Scale Supercomputing Applications from the Cloud to the Edge

Compatible with multiple operating systems, applications and software, RES AI adheres to open standards and integrates the latest commercial technologies to support supercomputing from the cloud to the edge.

Application Highlight:

Broadcasting the Superbowl

Traveling to and from sporting events in a vehicle, our supercomputing servers support real-time media broadcasting at the NFL Superbowl. Employing advanced data center NVIDIA GPUs to accelerate performance, they prevent lag time by processing imagery and video feeds right on the field, so you see every touchdown as it happens.
